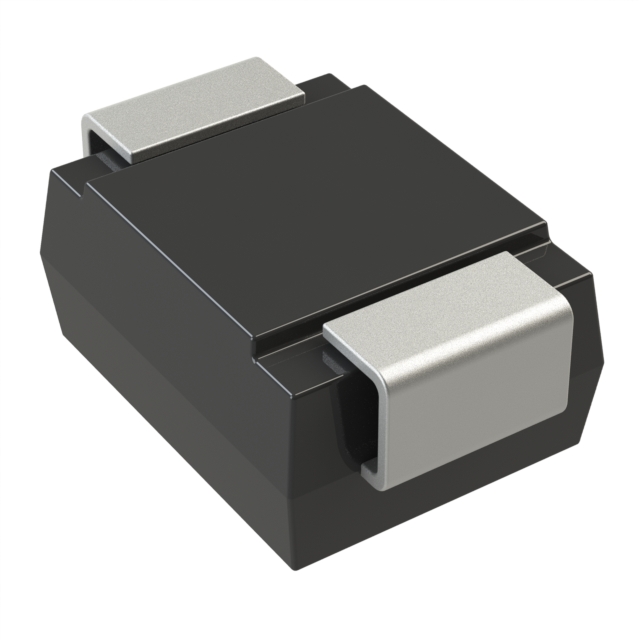

SMBJ5362B-TP
ActiveMicro Commercial Components
DIODE ZENER 28V 5W DO214AA
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMBJ5362B-TP
ActiveMicro Commercial Components
DIODE ZENER 28V 5W DO214AA
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMBJ5362B-TP |
|---|---|
| Current - Reverse Leakage @ Vr | 500 nA |
| Impedance (Max) (Zzt) [Max] | 6 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | SMB, DO-214AA |
| Power - Max [Max] | 5 W |
| Supplier Device Package | SMB |
| Supplier Device Package | DO-214AA |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 1.2 V |
| Voltage - Zener (Nom) (Vz) | 28 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.30 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.19 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.30 | |||
| 100 | $ 0.20 | |||
| 500 | $ 0.19 | |||
| Tape & Reel (TR) | 3000 | $ 0.19 | ||
| 6000 | $ 0.13 | |||
| 9000 | $ 0.12 | |||
| 15000 | $ 0.11 | |||
| 21000 | $ 0.11 | |||
| 30000 | $ 0.10 | |||
| 75000 | $ 0.10 | |||
Description
General part information
SMBJ5362B-TP
Zener Diode 28 V 5 W ±5% Surface Mount DO-214AA (SMB)
