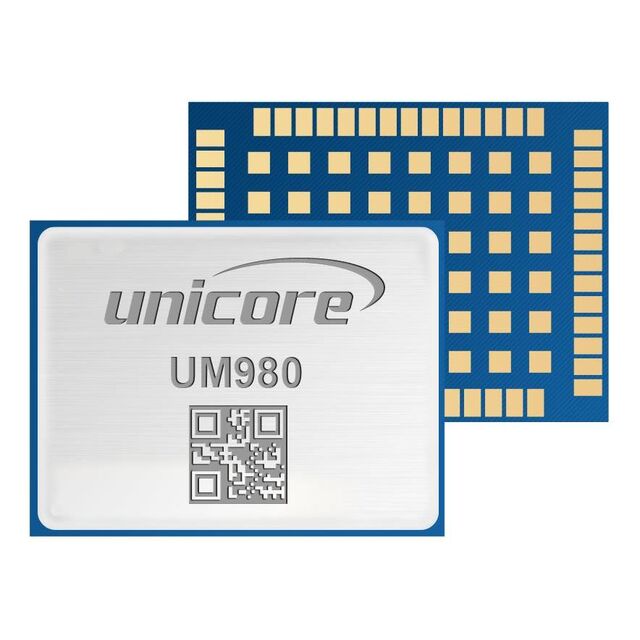

UM980
ActiveUnicore Communications, Inc.
GNSS MULTI-BAND RTK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
UM980
ActiveUnicore Communications, Inc.
GNSS MULTI-BAND RTK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UM980 |
|---|---|
| Applications | General Purpose |
| Data Interface | UART |
| Data Rate (Max) | 921.6 kbps |
| Frequency | 1.227 GHz, 1.207 GHz, 1.561 GHz, 1.575 GHz, 1.278 GHz, 1.602 GHz, 1.268 GHz, 1.246 GHz, 1.176 GHz |
| Modulation or Protocol | NAVIC, BeiDou, GNSS, GLONASS, GPS, Galileo, QZSS |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 54-SMD Module |
| Sensitivity | -161 dB |
| Supplier Device Package | 54-LGA (22x17) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5 | $ 218.00 | |
| 250 | $ 188.00 | |||
Description
General part information
UM980
- RF Receiver BeiDou, Galileo, GLONASS, GNSS, GPS, QZSS, NAVIC 1.575GHz, 1.561GHz, 1.278GHz, 1.227GHz, 1.176GHz, 1.268GHz, 1.278GHz, 1.207GHz, 1.602GHz, 1.246GHz -161dBm 921.6kbps 54-LGA (22x17)
