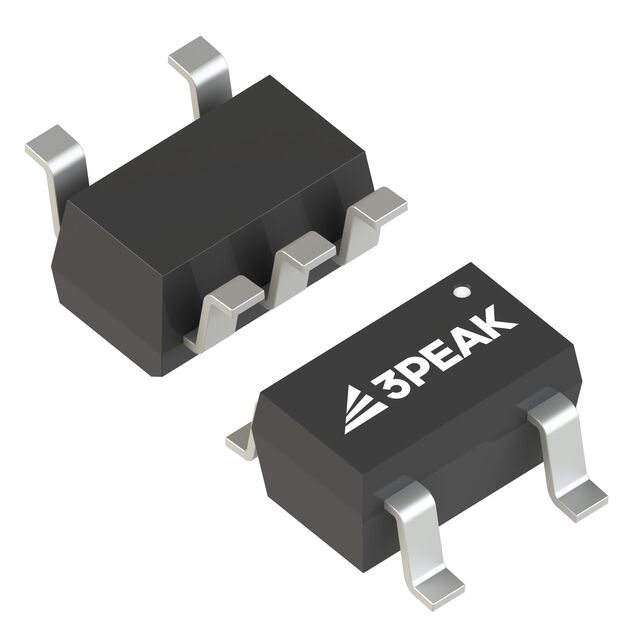

TPL905233-S5TR
Active3PEAK
LINEAR VOLTAGE REGULATOR IC FIXE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPL905233-S5TR
Active3PEAK
LINEAR VOLTAGE REGULATOR IC FIXE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPL905233-S5TR |
|---|---|
| Control Features | Enable, Current Limit |
| Current - Output | 500 mA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | SC-74A, SOT-753 |
| Protection Features | Over Current, Under Voltage Lockout (UVLO), Over Temperature, Reverse Current |
| PSRR | 88 dB |
| PSRR [Max] | 82 dB |
| PSRR [Min] | 45 dB |
| Supplier Device Package | SOT-23-5 |
| Voltage - Input (Max) [Max] | 5.5 V |
| Voltage - Output (Min/Fixed) | 1.8 V |
| Voltage Dropout (Max) [Max] | 0.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.34 | |
| 10 | $ 0.84 | |||
| 25 | $ 0.71 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.41 | |||
| Digi-Reel® | 1 | $ 1.34 | ||
| 10 | $ 0.84 | |||
| 25 | $ 0.71 | |||
| 100 | $ 0.56 | |||
| 250 | $ 0.49 | |||
| 500 | $ 0.44 | |||
| 1000 | $ 0.41 | |||
| Tape & Reel (TR) | 3000 | $ 0.31 | ||
| 9000 | $ 0.29 | |||
Description
General part information
TPL905233-S5TR
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5
