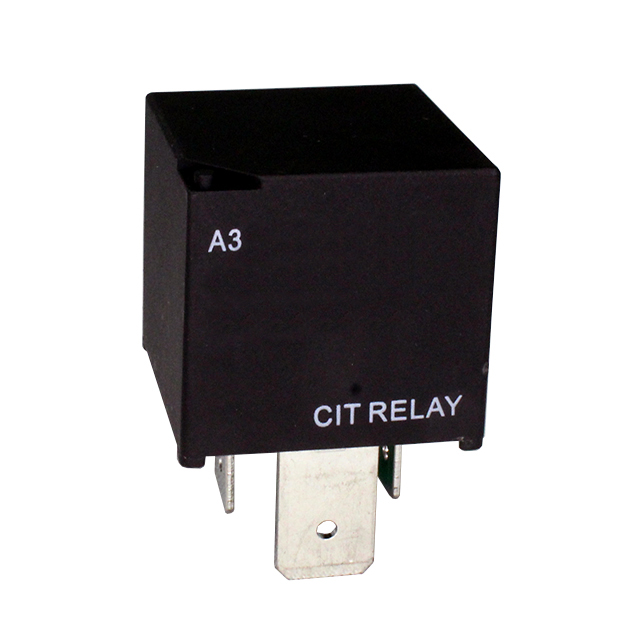

A31ACQ12VDC2D
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 80A 12V
Deep-Dive with AI
Search across all available documentation for this part.
A31ACQ12VDC2D
ActiveCIT Relay and Switch
RELAY AUTOMOTIVE SPST 80A 12V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A31ACQ12VDC2D |
|---|---|
| Coil Current | 150 mA |
| Coil Power | 1.8 W |
| Coil Resistance | 80 Ohms |
| Coil Type | Non Latching |
| Coil Voltage | 12 VDC |
| Contact Form | SPST-NO (1 Form A) |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Contact Rating (Current) | 80 A |
| Features | Diode |
| Mounting Type | Socketable |
| Must Operate Voltage | 8.4 VDC |
| Must Release Voltage | 1.2 VDC |
| Operate Time | 7 ms |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Release Time | 5 ms |
| Switching Voltage | 75 VDC |
| Termination Style | Plug In, Multiple Sizes, Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 400 | $ 2.55 | |
Description
General part information
A31ACQ12VDC2D
RELAY AUTOMOTIVE SPST 80A 12V
