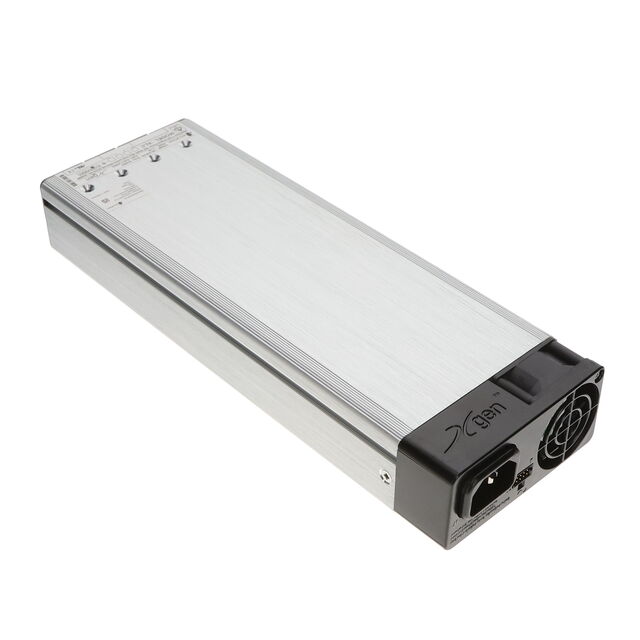

XLC-02
ActiveEXCELSYS / Advanced Energy
CONFIG POWER CHASSIS 600W 4 SLOT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XLC-02
ActiveEXCELSYS / Advanced Energy
CONFIG POWER CHASSIS 600W 4 SLOT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XLC-02 |
|---|---|
| Approval Agency | CE, cURus |
| Efficiency | 89 % |
| Features | Ruggedized, Fan Fail, Reverse Fan, Temperature Alarm, Conformal Coating |
| Height [z] | 40.4 mm |
| Height [z] | 1.59 in |
| Number of Positions | 4 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 600 W |
| Size / Dimension [x] | 10.24 " |
| Size / Dimension [x] | 260 mm |
| Size / Dimension [y] | 89 mm |
| Size / Dimension [y] | 3.5 in |
| Type | Standard |
| Voltage - Input [Max] | 264 VAC, 380 VDC |
| Voltage - Input [Min] | 120 VDC, 85 VAC |
| Voltage - Isolation | 3000 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 282.54 | |
| 10 | $ 248.29 | |||
Description
General part information
XLC-02
600 W 4 Slot AC DC Configurable Power Supply Chassis
