Technical Specifications
Parameters and characteristics for this part
| Specification | 2SC4097-R-TP |
|---|---|
| Current - Collector (Ic) (Max) [Max] | 500 mA |
| Current - Collector Cutoff (Max) [Max] | 1 µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce [Min] | 82 hFE |
| Frequency - Transition | 250 MHz |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

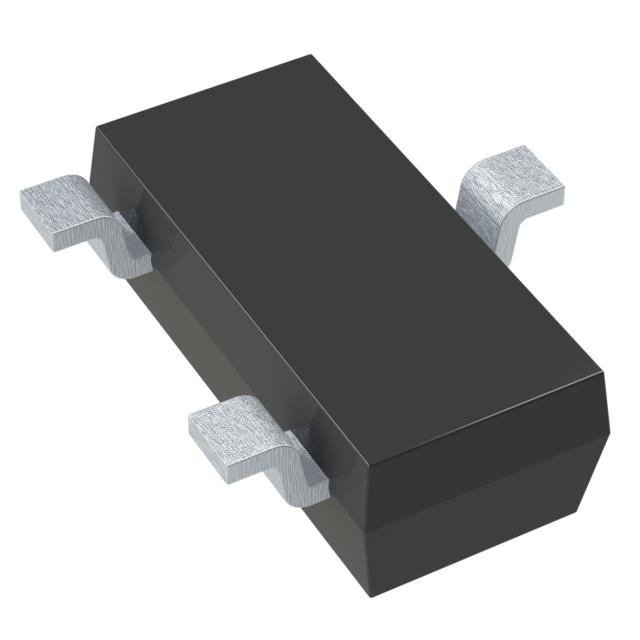

| Package / Case | SC-70, SOT-323 |
| Power - Max [Max] | 200 mW |
| Supplier Device Package | SOT-323 |
| Transistor Type | NPN |
| Vce Saturation (Max) @ Ib, Ic | 400 mV |
| Voltage - Collector Emitter Breakdown (Max) | 32 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 3000 | $ 0.06 | |
Description
General part information
2SC4097-R-TP
Bipolar (BJT) Transistor NPN 32 V 500 mA 250MHz 200 mW Surface Mount SOT-323
