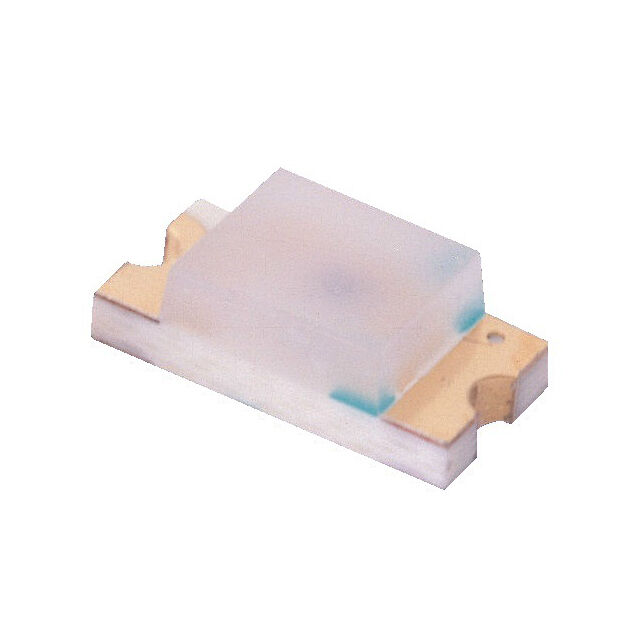

HT-150USD-5521
ActiveHarvatek Corporation
3.2(L) X 1.6(W) X 1.1(H)MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HT-150USD-5521
ActiveHarvatek Corporation
3.2(L) X 1.6(W) X 1.1(H)MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HT-150USD-5521 |
|---|---|
| Color | Red |
| Configuration | Independent |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.2 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1.6 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 120 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3216 Metric) |
| Size / Dimension [x] | 3.2 mm |
| Size / Dimension [y] | 1.6 mm |
| Supplier Device Package | 1206 |
| Voltage - Forward (Vf) (Typ) | 1.9 V |
| Wavelength - Dominant | 622 nm |
| Wavelength - Peak | 636 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.07 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.07 | |||
| Tape & Reel (TR) | 100 | $ 0.06 | ||
Description
General part information
HT-150USD-5521
Red 622nm LED Indication - Discrete 1.9V 1206 (3216 Metric)
