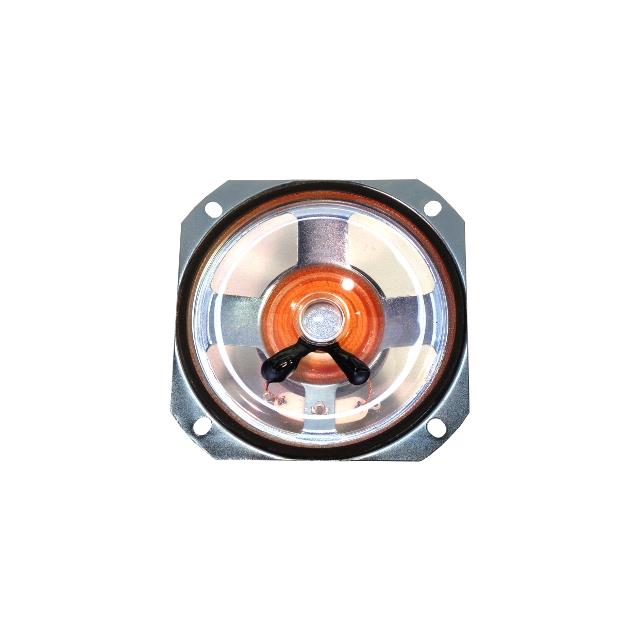

PSR7777N08AK
ActiveMallory Sonalert Products Inc.
SPEAKER 8OHM 2W TOP PORT 84DB
Deep-Dive with AI
Search across all available documentation for this part.
PSR7777N08AK
ActiveMallory Sonalert Products Inc.
SPEAKER 8OHM 2W TOP PORT 84DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PSR7777N08AK |
|---|---|
| Efficiency - dBA | 84 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 420 Hz |
| Frequency Range [Max] | 9 kHz |
| Frequency Range [Min] | 420 Hz |
| Height - Seated (Max) [Max] [z] | 0.945 in |
| Height - Seated (Max) [Max] [z] | 24 mm |
| Impedance | 8 Ohms |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Nd-Fe-B |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Power - Max [Max] | 3 W |
| Power - Rated | 2 W |
| Shape | Square |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.88 | |
| 10 | $ 5.60 | |||
| 25 | $ 5.16 | |||
| 50 | $ 4.86 | |||
| 100 | $ 4.57 | |||
| 250 | $ 4.22 | |||
| 500 | $ 4.11 | |||
Description
General part information
PSR7777N08AK
8 Ohms General Purpose Speaker 2 W 420 Hz ~ 9 kHz Top Square
Documents
Technical documentation and resources
No documents available
