84137180
ActiveSensata-Crydom

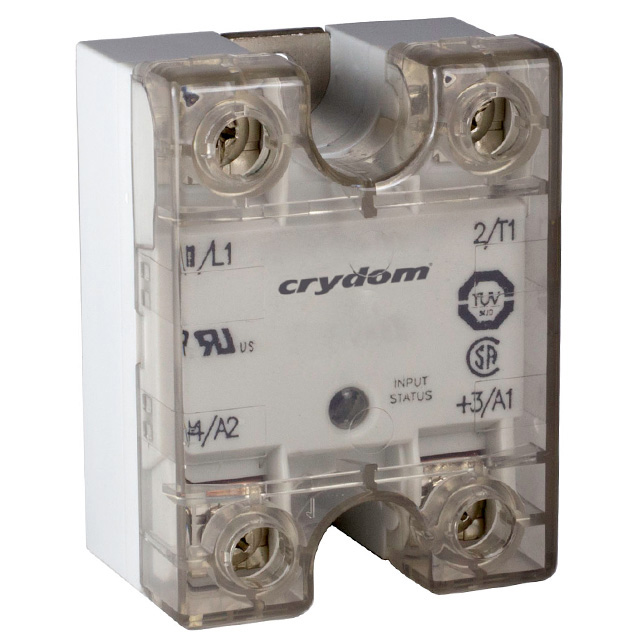

SSR RELAY SPST-NO 125A 48-660V
Deep-Dive with AI
DocumentsCE Declaration of Conformity
Technical Specifications
Parameters and characteristics for this part
| Specification | 84137180 |
|---|---|
| Approval Agency | CSA, TUV, cURus, CE |
| Load Current | 125 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Output Type | AC, Zero Cross |
| Package / Case | Hockey Puck |
| Termination Style | Screw Terminal |
| Voltage - Input [Max] | 32 V |
| Voltage - Input [Min] | 4 V |
| Voltage - Load [Max] | 660 V |
| Voltage - Load [Min] | 48 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 189.18 | |
| 10 | $ 180.17 | |||
| 50 | $ 171.98 | |||
Description
General part information
84137180
Solid State SPST-NO (1 Form A) Hockey Puck
