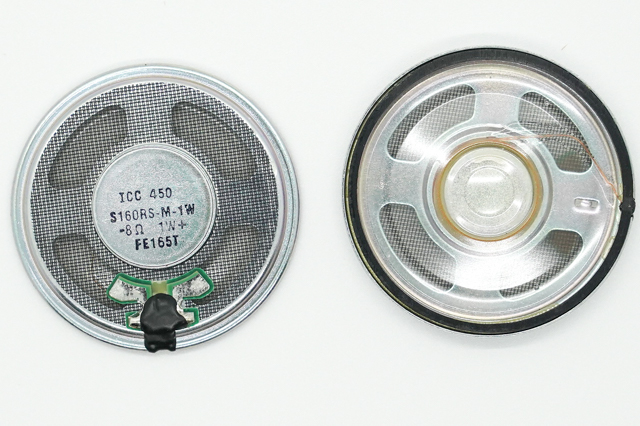

S160RS-M-1W
ActiveIntervox
SPEAKER 8OHM 1W TOP PORT 84DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S160RS-M-1W
ActiveIntervox
SPEAKER 8OHM 1W TOP PORT 84DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S160RS-M-1W |
|---|---|
| Distortion Rating [Max] | 5 % |
| Efficiency - dBA | 84 dBA |
| Efficiency - Testing | 1 mW/100mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 430 Hz |
| Frequency Range [Max] | 5 kHz |
| Frequency Range [Min] | 200 Hz |
| Height - Seated (Max) [Max] [z] | 0.193 " |
| Height - Seated (Max) [Max] [z] | 4.9 mm |
| Impedance | 8 Ohms |
| Material - Cone | Polyester, Polyethylene Terephthalate (PET) |
| Material - Magnet | Rare Earth |
| Port Location | Top |
| Power - Max [Max] | 1.5 W |
| Power - Rated | 1 W |
| Shape | Round |
| Size / Dimension [diameter] | 1.575 " |
| Size / Dimension [diameter] | 40 mm |
| Technology | Magnetic |
| Termination | Solder Pads |
| Type | Low Profile |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 150 | $ 5.90 | |
| 600 | $ 5.71 | |||
| 1050 | $ 5.41 | |||
Description
General part information
S160RS-M-1W
8 Ohms Low Profile Speaker 1 W 200 Hz ~ 5 kHz Top Round
