SMCJ170AQ-TP
ActiveMicro Commercial Components
TVS DIODE 170VWM 275VC DO214AB
Deep-Dive with AI
Search across all available documentation for this part.
SMCJ170AQ-TP
ActiveMicro Commercial Components
TVS DIODE 170VWM 275VC DO214AB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SMCJ170AQ-TP |
|---|---|
| Current - Peak Pulse (10/1000µs) | 5.5 A |
| Grade | Automotive |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 175 ░C |
| Operating Temperature [Min] | -55 °C |

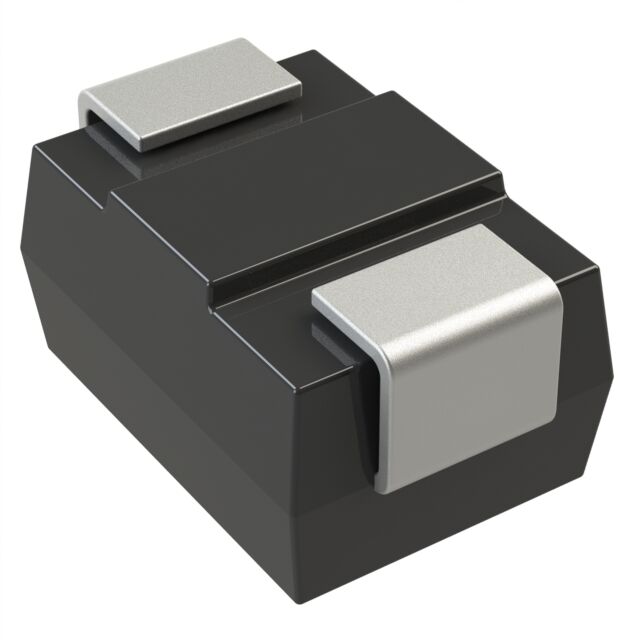

| Package / Case | SMC, DO-214AB |
| Power - Peak Pulse | 1.5 kW |
| Power - Peak Pulse | 1500 W |
| Power Line Protection | False |
| Qualification | AEC-Q101 |
| Supplier Device Package | DO-214AB (SMC) |
| Type | Zener |
| Unidirectional Channels [custom] | 1 |
| Voltage - Breakdown (Min) [Min] | 189 V |
| Voltage - Clamping (Max) @ Ipp [Max] | 275 V |
| Voltage - Reverse Standoff (Typ) | 170 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 3000 | $ 0.33 | |
| 6000 | $ 0.30 | |||
| 9000 | $ 0.29 | |||
| 15000 | $ 0.28 | |||
Description
General part information
SMCJ170AQ-TP
275V Clamp 5.5A Ipp Tvs Diode Surface Mount DO-214AB (SMC)
