QR2-16/5-QC48IN-20
ActiveQualtek
HEATSHRINK 16/5MM-48"
Deep-Dive with AI
Search across all available documentation for this part.
QR2-16/5-QC48IN-20
ActiveQualtek
HEATSHRINK 16/5MM-48"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | QR2-16/5-QC48IN-20 |
|---|---|
| Color | Black |
| Features | Abrasion Resistant, Impact Resistant, UV Resistant |
| Inner Diameter - Recovered [diameter] | 5 mm |
| Inner Diameter - Recovered [diameter] | 0.197 " |
| Inner Diameter - Supplied [diameter] | 16 mm |
| Inner Diameter - Supplied [diameter] | 0.63 in |
| Length [x] | 1.22 m |
| Length [x] | 4 ft |
| Material | Polyolefin (PO) |
| Operating Temperature [Max] | 110 °C |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 2.21 mm |
| Recovered Wall Thickness | 0.087 in |
| Shelf Life | 144 Months |
| Shrinkage Ratio [Max] | 3 |
| Shrinkage Ratio [Min] | 1 |
| Storage/Refrigeration Temperature [Max] | 40 °C |
| Storage/Refrigeration Temperature [Min] | -10 °C, -50 °F |
| Type | Tubing, Flexible |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
QR2-16/5-QC48IN-20

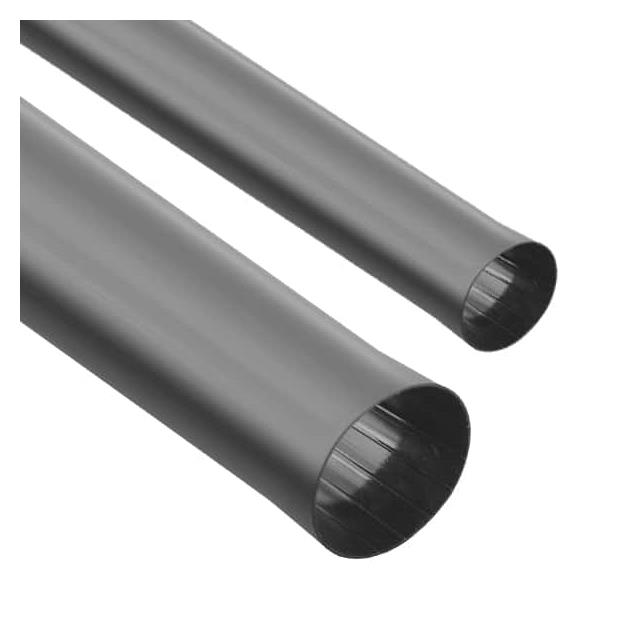

Heat Shrink Tubing, Flexible 0.630" (16.00mm) 3 to 1 Black 4.00' (1.22m)
