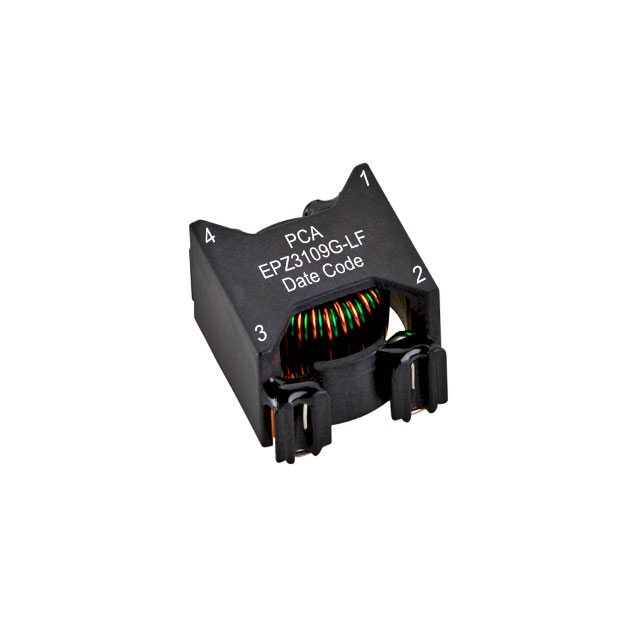

EPZ3109G-LF
ActivePCA Electronics, Inc.
CMC 2.5A 2LN 10 KOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPZ3109G-LF
ActivePCA Electronics, Inc.
CMC 2.5A 2LN 10 KOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPZ3109G-LF |
|---|---|
| Current Rating (Max) [Max] | 2.5 A |
| DC Resistance (DCR) (Max) [Max] | 60 mOhm |
| Filter Type | Power Line |
| Height (Max) [Max] | 8.9 mm |
| Height (Max) [Max] | 0.35 in |
| Impedance @ Frequency | 10 kOhms |
| Mounting Type | Surface Mount |
| Number of Lines | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 14.22 mm, 0.56 in |
| Size / Dimension [y] | 13.21 mm, 0.52 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.56 | |
| 5 | $ 6.42 | |||
| 10 | $ 5.76 | |||
| 25 | $ 5.00 | |||
| 50 | $ 4.17 | |||
| 100 | $ 3.51 | |||
| 250 | $ 3.13 | |||
Description
General part information
EPZ3109G-LF
2 Line Common Mode Choke Surface Mount 10 kOhms @ 1 MHz 2.5A DCR 60mOhm
