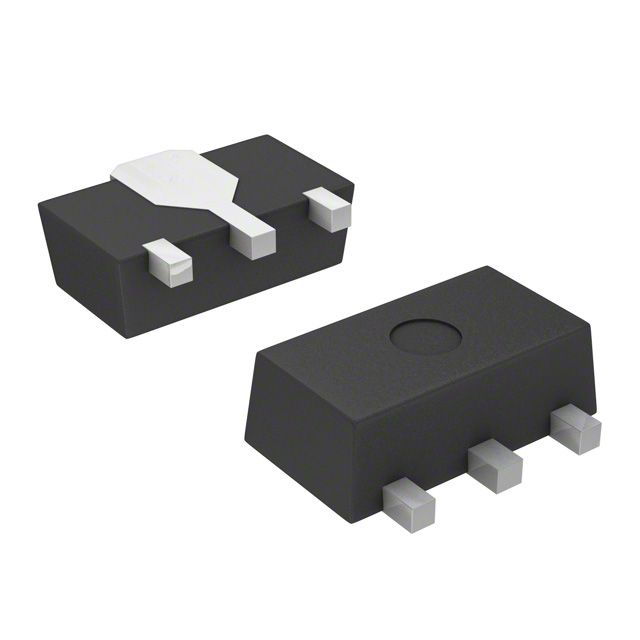

S-817B45AUA-CXIT2U
ActiveABLIC Inc.
IC REG LINEAR 4.5V 65MA SOT89-3
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S-817B45AUA-CXIT2U
ActiveABLIC Inc.
IC REG LINEAR 4.5V 65MA SOT89-3
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S-817B45AUA-CXIT2U |
|---|---|
| Current - Output | 65 mA |
| Current - Quiescent (Iq) | 2.5 µA |
| Mounting Type | Surface Mount |
| Number of Regulators | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 |
| Voltage - Input (Max) [Max] | 10 V |
| Voltage - Output (Min/Fixed) | 4.5 V |
| Voltage Dropout (Max) [Max] | 0.27 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.45 | |
| 2000 | $ 0.42 | |||
| 5000 | $ 0.40 | |||
| 10000 | $ 0.38 | |||
| 25000 | $ 0.37 | |||
Description
General part information
S-817B45AUA-CXIT2U
Linear Voltage Regulator IC Positive Fixed 1 Output 65mA SOT-89-3
