19021001
ActiveCML INNOVATIVE TECHNOLOGIES
INDICATOR PNL MNT 6MM NO RESISTO
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
19021001
ActiveCML INNOVATIVE TECHNOLOGIES
INDICATOR PNL MNT 6MM NO RESISTO
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 19021001 |
|---|---|
| Current | 10 mA |
| Ingress Protection | IP40 |
| Lens Color | Green |
| Lens Style | Round with Domed Top |
| Millicandela Rating | 20 mcd |
| Panel Cutout Dimensions | 6 mm |
| Panel Cutout Dimensions | 0.236 in |
| Panel Cutout Shape | Round |
| Termination Style | PC Pin |
| Type | LED |
| Voltage | 2.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.36 | |
Description
General part information
19021001

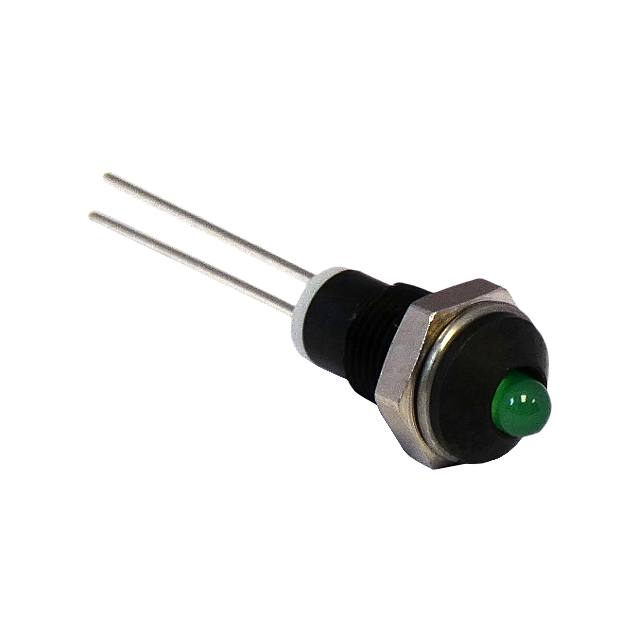

LED Panel Indicator 2.2V 10mA PC Pin
Documents
Technical documentation and resources
