RF600456
ActiveAvery Dennison RFID

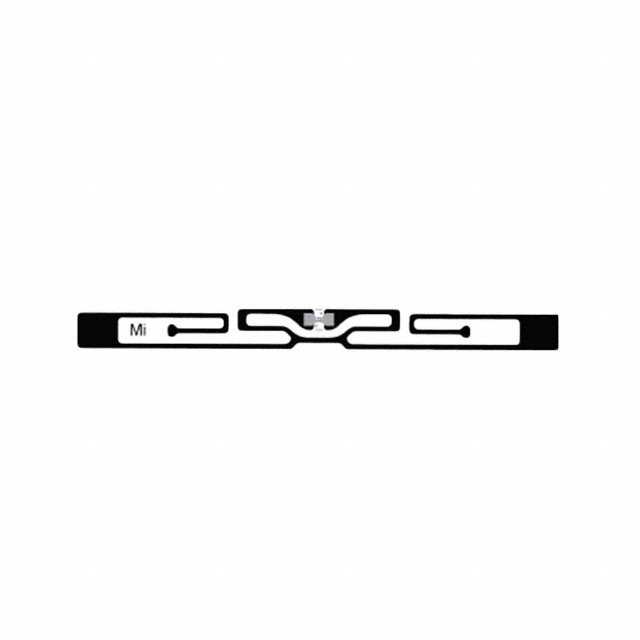

RFID TAG R/W 860-960MHZ INLAY
Deep-Dive with AI
Search across all available documentation for this part.
RF600456
ActiveAvery Dennison RFID
RFID TAG R/W 860-960MHZ INLAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RF600456 |
|---|---|
| Frequency [Max] | 960 MHz |
| Frequency [Min] | 860 MHz |
| Memory Type | Read/Write |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 95 mm |
| Size / Dimension [x] | 3.74 " |
| Size / Dimension [y] | 8.15 mm |
| Size / Dimension [y] | 0.321 in |
| Standards | EPC, ISO 18000-6 |
| Style | Inlay |
| Technology | Passive |
| Writable Memory | 256 b |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 20000 | $ 0.14 | |
Description
General part information
RF600456
RFID Tag Read/Write 256b (EPC) Memory 860MHz ~ 960MHz EPC, ISO 18000-6 Inlay
