100023894
ActiveTelegartner Inc
N PLG 90 SD/CR G1
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100023894
ActiveTelegartner Inc
N PLG 90 SD/CR G1
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100023894 |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | LMR-195, RG-58 |
| Center Contact Material | Brass |
| Center Contact Plating | Silver |
| Connector Style | N Type |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Number of Ports | 1 |
| Shield Termination | Solder |
| Voltage Rating | 1000 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 13.07 | |
| 5 | $ 12.41 | |||
| 10 | $ 11.76 | |||
| 25 | $ 11.24 | |||
| 50 | $ 10.32 | |||
| 100 | $ 10.06 | |||
| 250 | $ 9.47 | |||
Description
General part information
100023894

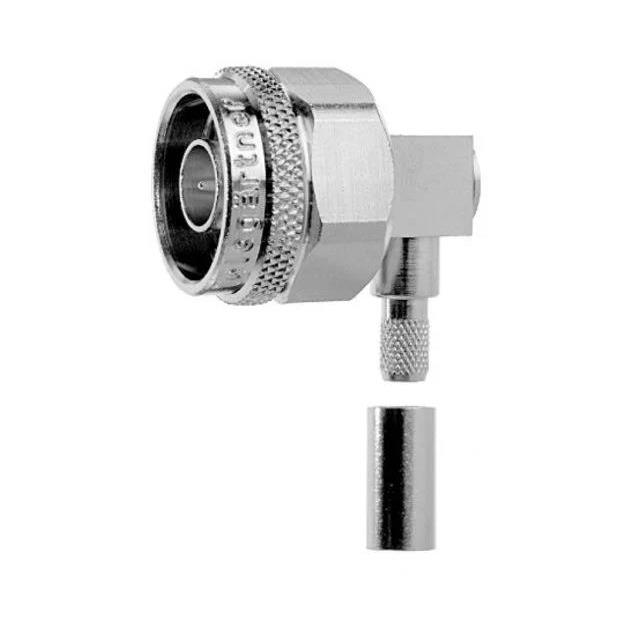

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
