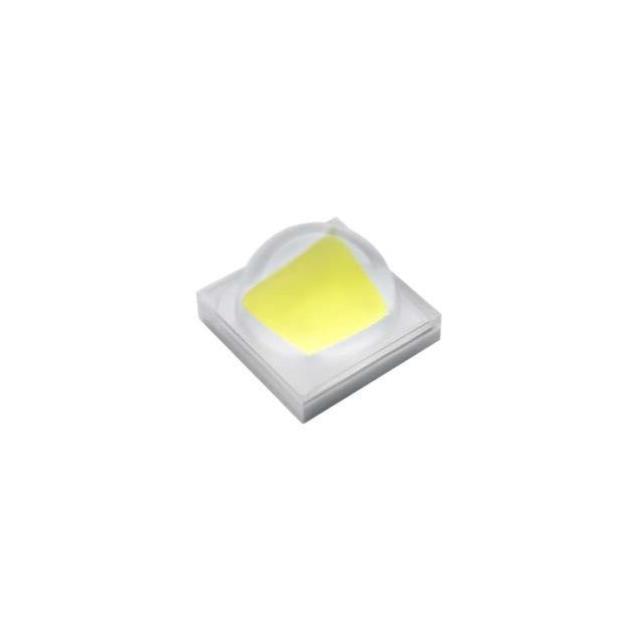

AB-3535CQ-27F80
ActiveAmerican Bright Optoelectronics Corporation
LED AB-3535CQ-KKFRA WHT 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AB-3535CQ-27F80
ActiveAmerican Bright Optoelectronics Corporation
LED AB-3535CQ-KKFRA WHT 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AB-3535CQ-27F80 |
|---|---|
| CCT (K) | 2700 K |
| Color | White, Warm |
| CRI (Color Rendering Index) | 80 |
| Current - Max [Max] | 1.5 A |
| Flux @ 25°C, Current - Test | 289 lm |
| Flux @ 85°C, Current - Test | 257 lm |
| Height - Seated (Max) [Max] [z] | 2.5 mm |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Lumens/Watt @ Current - Test | 138 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 0.14 " |
| Size / Dimension [x] | 3.55 mm |
| Size / Dimension [y] | 0.14 " |
| Size / Dimension [y] | 3.55 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.88 | |
| 10 | $ 1.19 | |||
| 100 | $ 0.88 | |||
| Digi-Reel® | 1 | $ 1.88 | ||
| 10 | $ 1.19 | |||
| 100 | $ 0.88 | |||
| Tape & Reel (TR) | 900 | $ 0.63 | ||
Description
General part information
AB-3535CQ-27F80
LED Lighting AB-3535CQ-KKFRA White, Warm 2700K 3V 700mA 120° 2-SMD, No Lead
