SDURF3020CTR
ActiveSMC Diode Solutions
DIODE ARRAY GP 200V 15A ITO220AB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDURF3020CTR
ActiveSMC Diode Solutions
DIODE ARRAY GP 200V 15A ITO220AB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDURF3020CTR |
|---|---|
| Current - Average Rectified (Io) (per Diode) | 15 A |
| Current - Reverse Leakage @ Vr | 10 µA |
| Diode Configuration | 1 Pair Common Anode |
| Mounting Type | Through Hole |
| Operating Temperature - Junction [Max] | 150 °C |
| Operating Temperature - Junction [Min] | -55 °C |

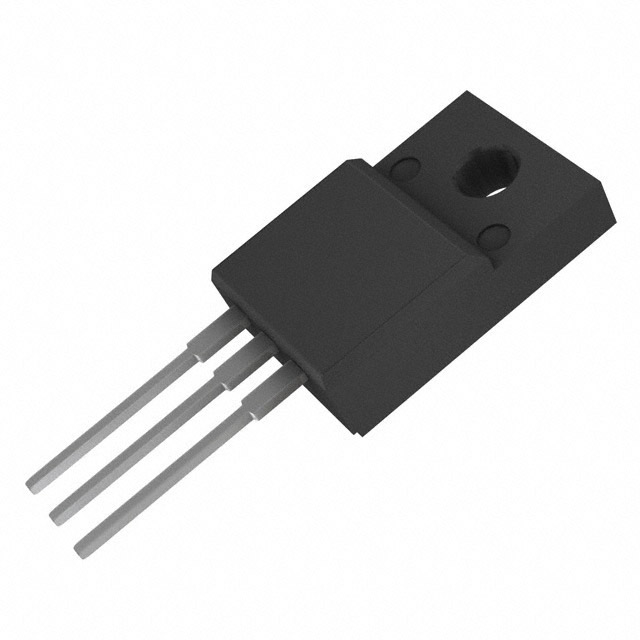

| Package / Case | TO-220-3 Full Pack, Isolated Tab |
| Reverse Recovery Time (trr) | 35 ns |
| Speed | 200 mA, 500 ns |
| Supplier Device Package | ITO-220AB |
| Technology | Standard |
| Voltage - DC Reverse (Vr) (Max) [Max] | 200 V |
| Voltage - Forward (Vf) (Max) @ If | 1.05 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.23 | |
| 50 | $ 0.99 | |||
| 100 | $ 0.78 | |||
| 500 | $ 0.66 | |||
| 1000 | $ 0.54 | |||
| 2000 | $ 0.51 | |||
| 5000 | $ 0.48 | |||
| 10000 | $ 0.46 | |||
Description
General part information
SDURF3020CTR
Diode Array 1 Pair Common Anode 200 V 15A Through Hole TO-220-3 Full Pack, Isolated Tab
