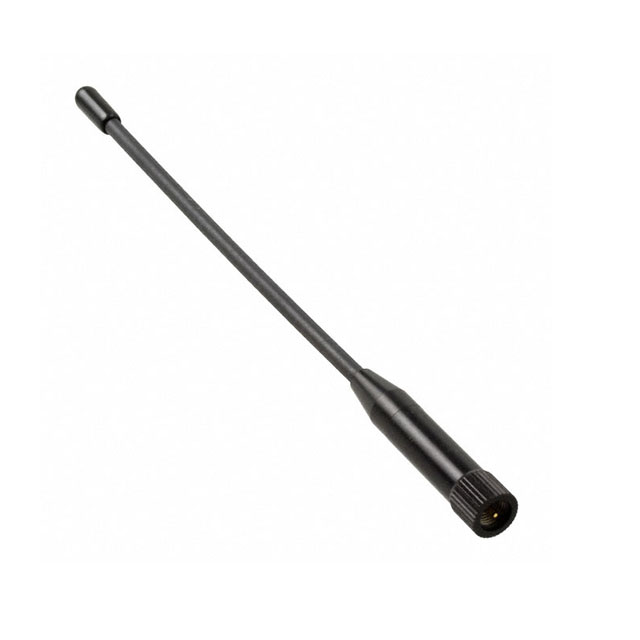

S463AM-868
ActiveNearson Inc.
RF ANT 868MHZ WHIP STR SMA MALE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S463AM-868
ActiveNearson Inc.
RF ANT 868MHZ WHIP STR SMA MALE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S463AM-868 |
|---|---|
| Antenna Type | Whip, Straight |
| Frequency Group [Max] | 1 GHz |
| Frequency Group [Min] | 300 MHz |
| Frequency Range [Max] | 869 MHz |
| Frequency Range [Min] | 867 MHz |
| Gain | 2 dBic |
| Height (Max) [Max] | 6.929 in |
| Height (Max) [Max] | 176 mm |
| Mounting Type | Connector Mount |
| Number of Bands | 1 |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 13.28 | |
| 10 | $ 9.74 | |||
Description
General part information
S463AM-868
RF ANTENNA Whip, Straight SMA Male Connector Mount
Documents
Technical documentation and resources
