100023712
ActiveTelegartner Inc
TNC PLG STR CR/CR G37 G55
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100023712 |
|---|---|
| Body Finish | Tri-Metal |
| Body Material | Brass |
| Cable Group | Belden 9913, LMR-400 |
| Center Contact Material | Brass |
| Center Contact Plating | Gold |
| Connector Style | TNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 11 GHz |
| Housing Color | Silver |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 20.01 | |
| 5 | $ 19.01 | |||
| 10 | $ 18.01 | |||
| 25 | $ 17.21 | |||
| 50 | $ 15.81 | |||
| 100 | $ 15.41 | |||
| 250 | $ 14.51 | |||
Description
General part information

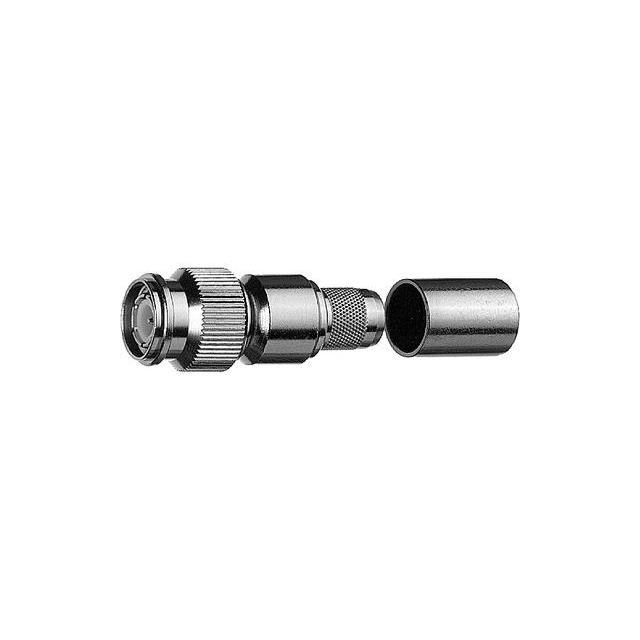

100023712
TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
