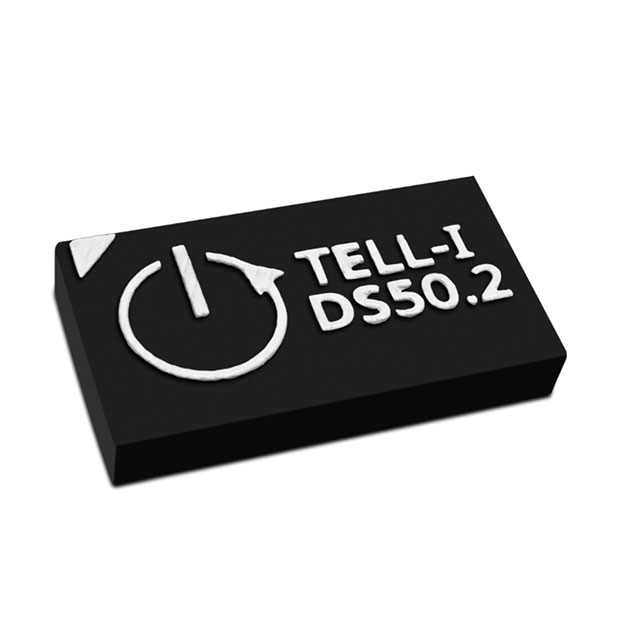

DS50.2T
ActiveTell-i
50A 7MHZ CURRENT SENSOR FOR SIC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DS50.2T
ActiveTell-i
50A 7MHZ CURRENT SENSOR FOR SIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DS50.2T |
|---|---|
| Current - Sensing | 50 A |
| Current - Supply (Max) [Max] | 20 mA |
| For Measuring | AC/DC |
| Frequency | DC ~ 7MHz |
| Linearity | 1 % |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 8-DIP Module |
| Polarization | Bidirectional |
| Response Time | 48 ns |
| Sensitivity | 42 mV/A |
| Sensor Type | Current Sensor |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 399.00 | |
| 10 | $ 299.00 | |||
| 100 | $ 150.00 | |||
| 1000 | $ 30.00 | |||
Description
General part information
DS50.2T
Current Sensor 50A 1 Channel Current Sensor Bidirectional 8-DIP Module
