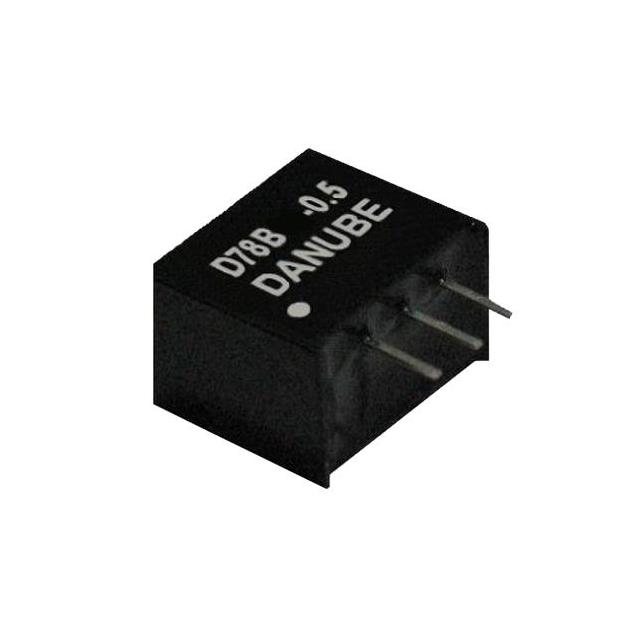

D78B33-0.5
ActiveDiwell Electronics
DC DC CONVERTER 3.3V 0.5A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
D78B33-0.5
ActiveDiwell Electronics
DC DC CONVERTER 3.3V 0.5A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | D78B33-0.5 |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) [Max] | 500 mA |
| Efficiency | 84 % |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SIP Module |
| Power (Watts) | 1.7 W |
| Size / Dimension [x] | 11.6 mm |
| Size / Dimension [x] | 0.46 in |
| Size / Dimension [y] | 0.3 " |
| Size / Dimension [y] | 7.6 mm |
| Size / Dimension [z] | 10.1 mm |
| Size / Dimension [z] | 0.4 " |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 32 V |
| Voltage - Input (Min) [Min] | 6.5 V |
| Voltage - Output 1 | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 1.82 | |
| 5 | $ 1.66 | |||
| 10 | $ 1.60 | |||
| 25 | $ 1.52 | |||
| 50 | $ 1.46 | |||
| 100 | $ 1.41 | |||
| 250 | $ 1.34 | |||
| 500 | $ 1.29 | |||
Description
General part information
D78B33-0.5
Non-Isolated PoL Module DC DC Converter 1 Output 3.3V 500mA 6.5V - 32V Input
