Technical Specifications
Parameters and characteristics for this part
| Specification | 6162.0056 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | cCSAus, ENEC, UL |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel Mount, Flange |
| Panel Cutout Dimensions [x] | 27.3 mm |
| Panel Cutout Dimensions [y] | 19.5 mm |
| Termination | 0.189 ", 4.8 mm |
| Termination | Quick Connect |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.39 | |
| 50 | $ 2.03 | |||
| 100 | $ 1.89 | |||
| 500 | $ 1.80 | |||
Description
General part information
6162.0056

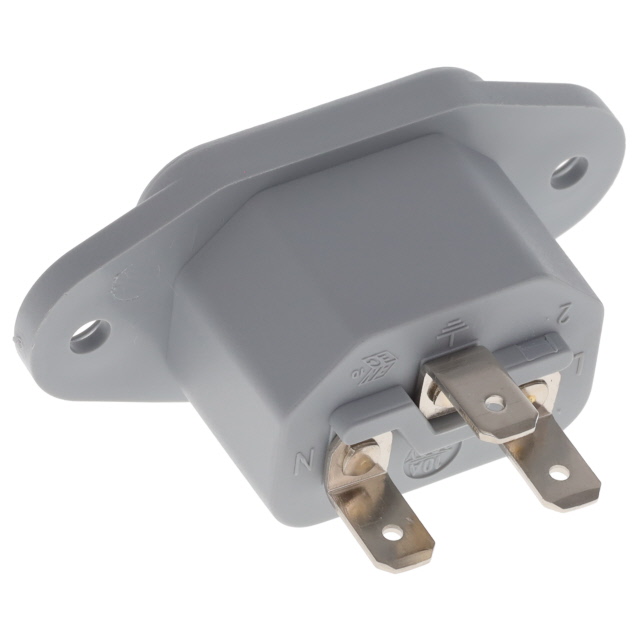

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange
