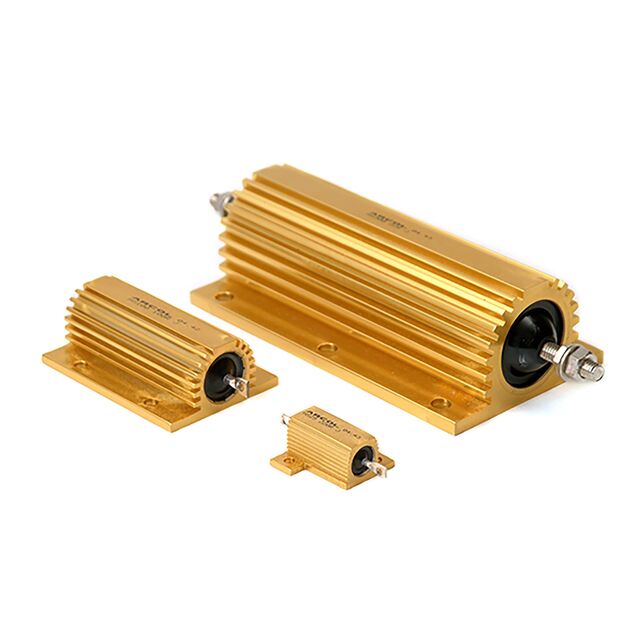

HS15 330R F
ActiveOhmite
15 WATTS AL HOUSEDNN330 OHMS 1%
Deep-Dive with AI
Search across all available documentation for this part.
HS15 330R F
ActiveOhmite
15 WATTS AL HOUSEDNN330 OHMS 1%
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HS15 330R F |
|---|---|
| Coating, Housing Type | Aluminum |
| Composition | Wirewound |
| Features | Pulse Withstanding |
| Height - Seated (Max) [Max] [z] | 11 mm |
| Height - Seated (Max) [Max] [z] | 0.433 in |
| Lead Style | Solder Lugs |
| Mounting Feature | Flanges |
| Power (Watts) | 15 W |
| Resistance | 330 Ohms |
| Size / Dimension [x] | 19.9 mm |
| Size / Dimension [x] | 0.783 in |
| Size / Dimension [y] | 0.827 in |
| Size / Dimension [y] | 21 mm |
| Temperature Coefficient | 100 ppm/°C |
| Tolerance | 1 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 200 | $ 2.87 | |
Description
General part information
HS15 330R F
330 Ohms ±1% 15W Wirewound Chassis Mount Resistor
Documents
Technical documentation and resources
No documents available
