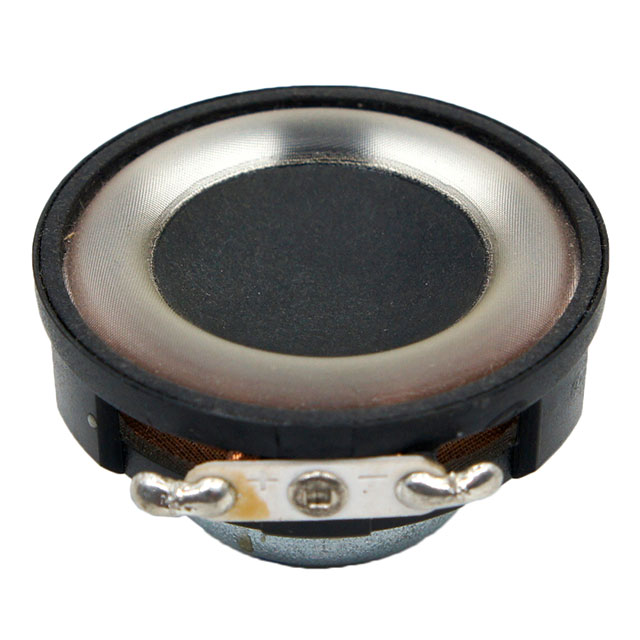

BFC-D40-22-1-002
ActiveGlass Acoustic Innovations Co. Ltd.
SPEAKER 1 OHM 3.5W TOP PORT 83DB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BFC-D40-22-1-002
ActiveGlass Acoustic Innovations Co. Ltd.
SPEAKER 1 OHM 3.5W TOP PORT 83DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BFC-D40-22-1-002 |
|---|---|
| Efficiency - dBA | 83 dBA |
| Efficiency - Testing | 500 mm |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency Range [Max] | 20 kHz |
| Frequency Range [Min] | 10 Hz |
| Height - Seated (Max) [Max] [z] | 22 mm |
| Height - Seated (Max) [Max] [z] | 0.866 in |
| Material - Cone | Paper |
| Material - Magnet | Nd-Fe-B |
| Port Location | Top |
| Power - Rated | 3.5 W |
| Shape | Round |
| Size / Dimension [diameter] | 1.567 in |
| Size / Dimension [diameter] | 39.8 mm |
| Technology | Magnetic |
| Termination | Solder Eyelet |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 4.34 | |
| 10 | $ 3.65 | |||
Description
General part information
BFC-D40-22-1-002
1 Ohms General Purpose Speaker 3.5 W 10 Hz ~ 20 kHz Top Round
