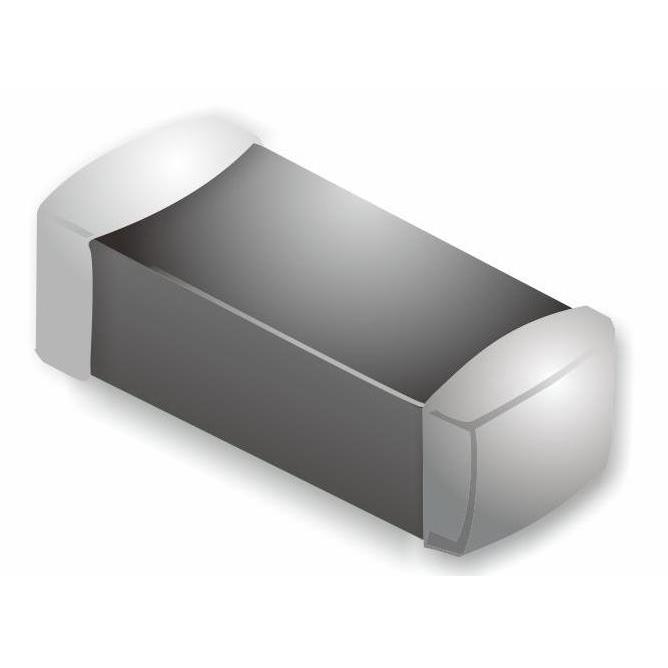

EBMS060303A700
ActiveMax Echo
FERRITE BEAD 70 OHM 0603 1LN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EBMS060303A700
ActiveMax Echo
FERRITE BEAD 70 OHM 0603 1LN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EBMS060303A700 |
|---|---|
| Current Rating (Max) [Max] | 300 mA |
| DC Resistance (DCR) (Max) [Max] | 350 mOhm |
| Height (Max) | 0.3 mm |
| Height (Max) [Max] | 0.012 in |
| Impedance @ Frequency | 70 Ohms |
| Mounting Type | Surface Mount |
| Number of Lines | 1 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 Metric |
| Package / Case | 0201 |
| Size / Dimension [x] | 0.6 mm |
| Size / Dimension [x] | 0.024 " |
| Size / Dimension [y] | 0.3 mm |
| Size / Dimension [y] | 0.012 " |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.10 | |
| 10 | $ 0.02 | |||
| 25 | $ 0.02 | |||
| 50 | $ 0.01 | |||
| 100 | $ 0.01 | |||
| 250 | $ 0.01 | |||
| 500 | $ 0.01 | |||
| 1000 | $ 0.01 | |||
| 5000 | $ 0.01 | |||
| Digi-Reel® | 1 | $ 0.10 | ||
| 10 | $ 0.02 | |||
| 25 | $ 0.02 | |||
| 50 | $ 0.01 | |||
| 100 | $ 0.01 | |||
| 250 | $ 0.01 | |||
| 500 | $ 0.01 | |||
| 1000 | $ 0.01 | |||
| 5000 | $ 0.01 | |||
| Tape & Reel (TR) | 15000 | $ 0.02 | ||
| 30000 | $ 0.02 | |||
| 45000 | $ 0.01 | |||
| 75000 | $ 0.01 | |||
| 105000 | $ 0.01 | |||
| 150000 | $ 0.01 | |||
| 375000 | $ 0.01 | |||
| 750000 | $ 0.01 | |||
Description
General part information
EBMS060303A700
70 Ohms @ 100 MHz 1 Signal Line Ferrite Bead 0201 (0603 Metric) 300mA 350mOhm
