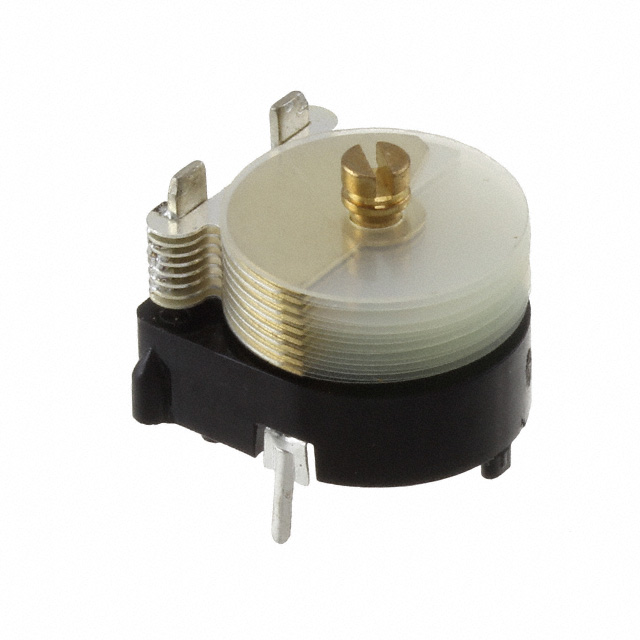

GZN30100
ObsoleteSprague-Goodman
CAP TRIMMER 18-300PF 150V TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
GZN30100
ObsoleteSprague-Goodman
CAP TRIMMER 18-300PF 150V TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | GZN30100 |
|---|---|
| Adjustment Type | Top |
| Capacitance Range [Max] | 300 pF |
| Capacitance Range [Min] | 18 pF |
| Dielectric Material | Polycarbonate (PC) |
| Features | General Purpose |
| Height - Seated (Max) [Max] [z] | 17 mm |
| Height - Seated (Max) [Max] [z] | 0.669 in |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Q @ Freq | 200, 1 MHz |
| Size / Dimension [x] | 0.709 in |
| Size / Dimension [x] | 18 mm |
| Size / Dimension [y] | 15.5 mm |
| Size / Dimension [y] | 0.61 in |
| Voltage - Rated | 150 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.46 | |
Description
General part information
GZN30100
18 ~ 300pF Trimmer Capacitor 150 V Top Through Hole
