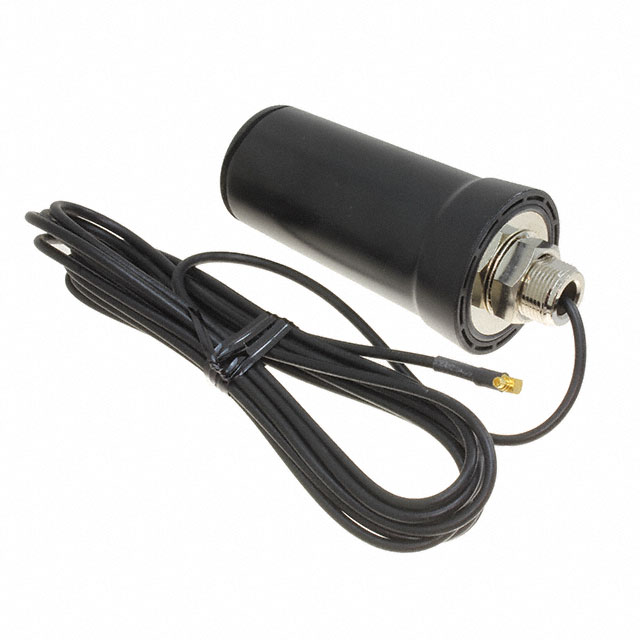

W765FL-100-RMM-AGDP
ActiveNearson Inc.
LOW PROFILE 3G ANTENNA WITH FLYI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W765FL-100-RMM-AGDP |
|---|---|
| Antenna Type | Dome |
| Applications | General Purpose |
| Features | Cable - 2.54m |
| Frequency (Center/Band) | 892 MHz, 1.85 GHz |
| Frequency Range [Max] | 960 MHz, 1.99 GHz |
| Frequency Range [Min] | 1.71 GHz, 824 MHz |
| Gain | 2 dBic |
| Height (Max) [Max] | 72 mm |
| Height (Max) [Max] [z] | 2.835 " |
| Number of Bands | 2 |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 40.90 | |
| 10 | $ 37.72 | |||
| 25 | $ 36.02 | |||
| 100 | $ 32.21 | |||
| 250 | $ 30.72 | |||
Description
General part information
W765FL-100-RMM-AGDP
892MHz, 1.85GHz General Purpose Dome RF Antenna 824MHz ~ 960MHz, 1.71GHz ~ 1.99GHz 2dBi MMCX Panel Mount
