NN01-103
ObsoleteIgnion
GEOFIND - 103
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NN01-103
ObsoleteIgnion
GEOFIND - 103
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NN01-103 |
|---|---|
| Antenna Type | Chip |
| Applications | GLONASS, GPS, Beidou |
| Frequency (Center/Band) | 1.575 GHz, 1.602 GHz, 1.561 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.606 GHz |
| Frequency Range [Min] | 1.598 GHz |
| Gain | 1.4 dBi, 1.3 dBi, 1.2 dBi |
| Height (Max) [Max] | 0.035 in |
| Height (Max) [Max] | 0.9 mm |
| Mounting Type | Surface Mount |
| Number of Bands | 3 |
| RF Family/Standard | Navigation |
| Termination | Solder |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
NN01-103

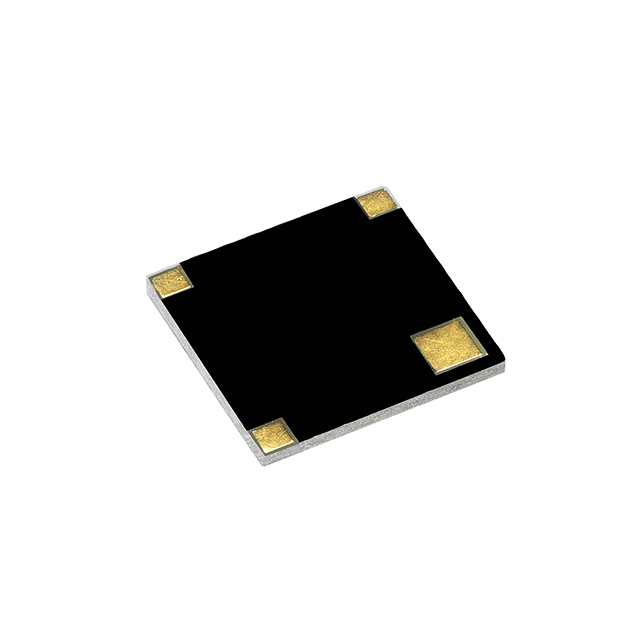

RF ANTENNA Beidou, GLONASS, GPS Chip Solder Surface Mount
