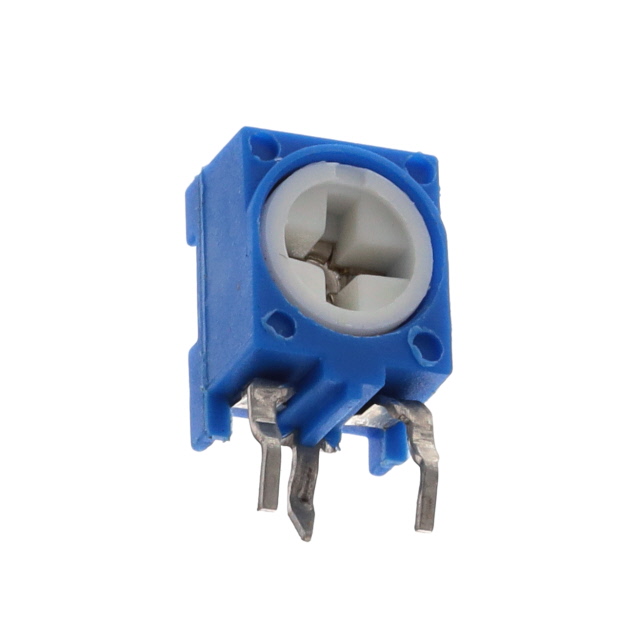

N6S25T0C-103-3030
ActiveAmphenol Piher Sensing Systems
TRIMMER 10K OHM 0.1W PC PIN SIDE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | N6S25T0C-103-3030 |
|---|---|
| Adjustment Type | Side Adjustment |
| Mounting Type | Through Hole |
| Number of Turns | 1 |
| Power (Watts) | 0.1 W |
| Power (Watts) | 0.1 W |
| Resistance | 10000 Ohms |
| Resistive Material | Carbon |
| Size / Dimension [x] | 8.7 mm |
| Size / Dimension [x] | 0.343 in |
| Size / Dimension [y] | 0.252 " |
| Size / Dimension [y] | 6.4 mm |
| Temperature Coefficient | 300 ppm/°C |
| Termination Style | PC Pins |
| Tolerance | 30 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.43 | |
| 10 | $ 0.35 | |||
| 25 | $ 0.32 | |||
| 50 | $ 0.30 | |||
| 100 | $ 0.28 | |||
| 250 | $ 0.26 | |||
| 500 | $ 0.24 | |||
| 1000 | $ 0.22 | |||
| 5000 | $ 0.19 | |||
Description
General part information
N6S25T0C-103-3030
10 kOhms 0.1W, 1/10W PC Pins Through Hole Trimmer Potentiometer Carbon 1.0 Turn Side Adjustment
