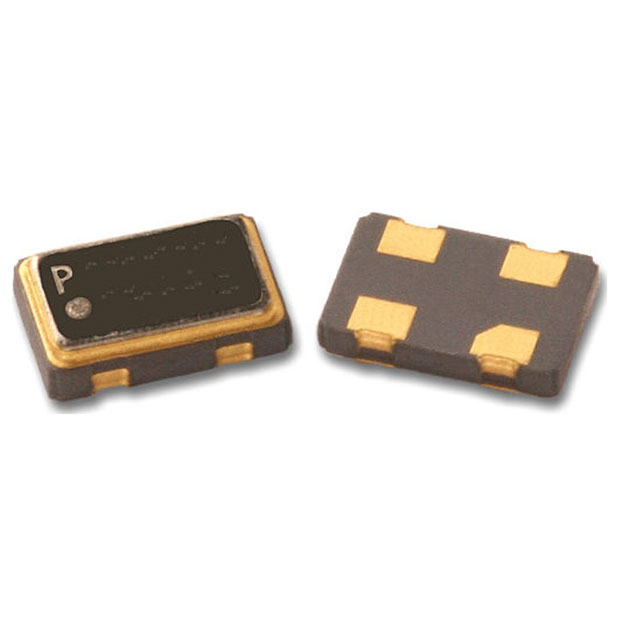

SM5545JCV-66.6667M
ActivePletronics
XTAL OSC XO 66.6667MHZ CMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
SM5545JCV-66.6667M
ActivePletronics
XTAL OSC XO 66.6667MHZ CMOS SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SM5545JCV-66.6667M |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 9 mA |
| Frequency | 66.6667 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.049 " |
| Height - Seated (Max) [Max] [z] | 1.25 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.25 | |
| 10 | $ 1.19 | |||
| 50 | $ 1.17 | |||
| 100 | $ 1.00 | |||
| 500 | $ 0.97 | |||
| Digi-Reel® | 1 | $ 1.25 | ||
| 10 | $ 1.19 | |||
| 50 | $ 1.17 | |||
| 100 | $ 1.00 | |||
| 500 | $ 0.97 | |||
| Tape & Reel (TR) | 1000 | $ 0.82 | ||
| 3000 | $ 0.78 | |||
| 5000 | $ 0.75 | |||
| 10000 | $ 0.72 | |||
Description
General part information
SM5545JCV-66.6667M
66.6667 MHz XO (Standard) CMOS Oscillator 3.3V Enable/Disable 4-SMD, No Lead
Documents
Technical documentation and resources
No documents available
