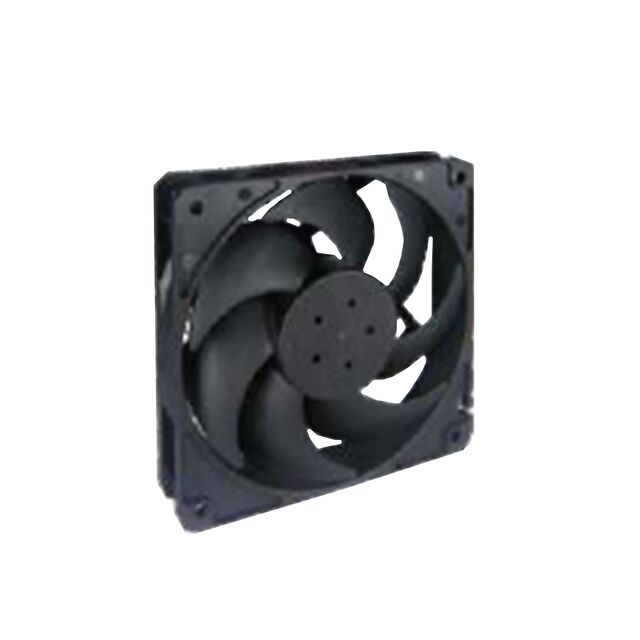

YW12025012BM-4
ActiveYS TECH USA
120X25MM 12V, 2200RPM, 3 WIRES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
YW12025012BM-4
ActiveYS TECH USA
120X25MM 12V, 2200RPM, 3 WIRES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | YW12025012BM-4 |
|---|---|
| Air Flow | 2.45 mł/min |
| Air Flow | 87.8 CFM |
| Approval Agency | cURus, CE, TUV |
| Bearing Type | Ball |
| Current Rating (Amps) | 0.29 A |
| Fan Type | Tubeaxial |
| Features | Alarm Sensor |
| Lifetime @ Temp. | 80000 Hrs |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Noise | 40.5 dB(A) |
| Power (Watts) | 3.48 W |
| RPM | 2200 RPM |
| Size / Dimension [x] | 120 mm |
| Size / Dimension [y] | 120 mm |
| Static Pressure | 0.154 in H2O |
| Static Pressure | 38.4 Pa |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 13.2 VDC |
| Voltage Range [Min] | 7 V |
| Width [y] | 25 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 10.71 | |
| 10 | $ 9.55 | |||
| 25 | $ 9.12 | |||
| 50 | $ 8.81 | |||
| 100 | $ 8.51 | |||
| 250 | $ 8.13 | |||
| 500 | $ 7.85 | |||
| 1000 | $ 7.59 | |||
Description
General part information
YW12025012BM-4
Fan Tubeaxial 12VDC Square - 120mm L x 120mm H Ball 87.8 CFM (2.45mł/min) 3 Wire Leads
