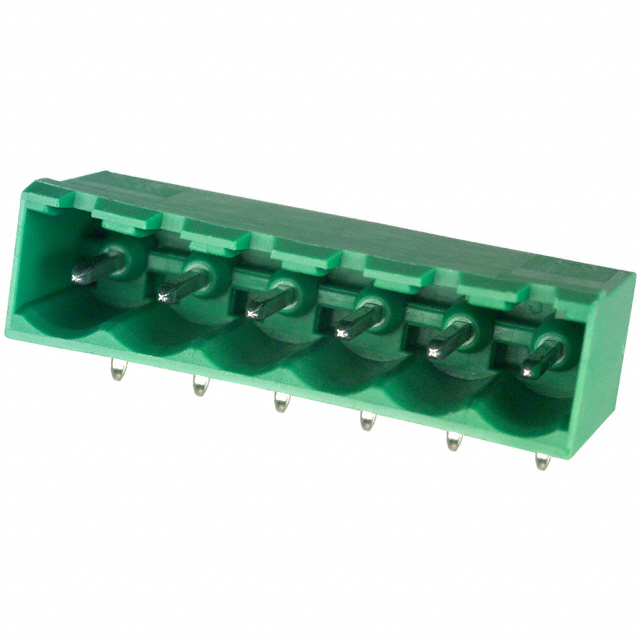

EDSTLZ950/6
ActiveOn Shore Technology Inc.
TERM BLOCK HDR 6POS 90DEG 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
EDSTLZ950/6
ActiveOn Shore Technology Inc.
TERM BLOCK HDR 6POS 90DEG 5.08MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EDSTLZ950/6 |
|---|---|
| Contact Tail Length | 3.5 mm |
| Contact Tail Length | 0.138 in |
| Header Orientation | 90°, Right Angle |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height | 3.5 mm |
| Insulation Height | 0.138 in |
| Mounting Type | Solder |
| Number of Levels | 1 |
| Number of Positions | 6 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 6 |
| Type | Header, Male Pins, Shrouded (4 Side) |
| Voltage - UL | 300 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.07 | |
| 10 | $ 1.23 | |||
| 25 | $ 1.06 | |||
| 50 | $ 0.97 | |||
| 100 | $ 0.90 | |||
| 250 | $ 0.84 | |||
| 500 | $ 0.80 | |||
| 1000 | $ 0.78 | |||
| 5000 | $ 0.74 | |||
Description
General part information
EDSTLZ950/6
6 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.200" (5.08mm) 90°, Right Angle Solder
