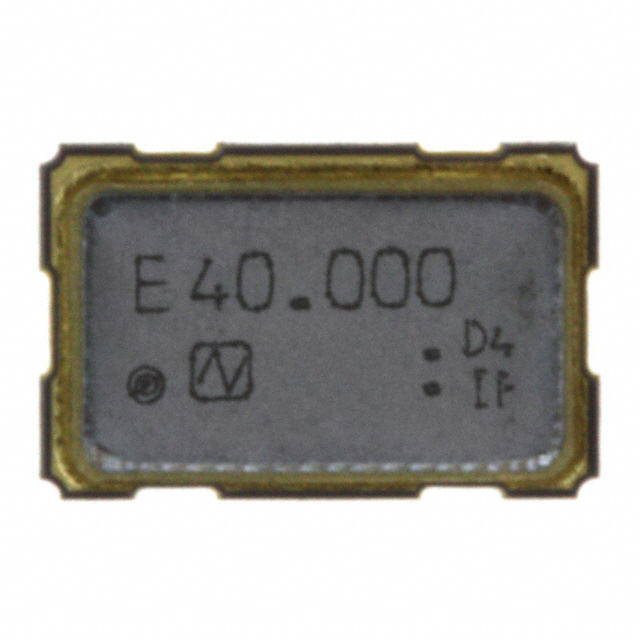

2765E-40.000000MHZ

Obsolete

NDK America, Inc.

XTAL OSC XO 40.0000MHZ CMOS SMD

Search across all available documentation for this part.

Obsolete

NDK America, Inc.

XTAL OSC XO 40.0000MHZ CMOS SMD

Technical Specifications

Parameters and characteristics for this part

Specification	2765E-40.000000MHZ

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	30 ÁA
Current - Supply (Max) [Max]	30 mA
Frequency	40 MHz
Frequency Stability	100 ppm
Function	Standby (Power Down)
Height - Seated (Max) [Max]	1.2 mm
Height - Seated (Max) [Max]	0.047 in
Mounting Type	Surface Mount
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Output	CMOS
Package / Case	4-SMD, No Lead
Size / Dimension [x]	0.197 in
Size / Dimension [x]	5 mm
Size / Dimension [y]	0.126 "
Size / Dimension [y]	3.2 mm
Type	XO (Standard)
Voltage - Supply	3.3 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

40 MHz XO (Standard) CMOS Oscillator 3.3V Standby (Power Down) 4-SMD, No Lead
