NJDDGN0003
ActiveAmphenol CS (High Speed IO)
SFP CABLE ASSEMBLY, PASSIVE, 25A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
NJDDGN0003
ActiveAmphenol CS (High Speed IO)
SFP CABLE ASSEMBLY, PASSIVE, 25A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | NJDDGN0003 |
|---|---|
| Cable Connectors | SFP |
| Cable Type | Round |
| Color | Black |
| Connector Type | Plug to Plug |
| Fastening Type | Push-Pull, Latch Lock |
| Frequency - Max [Max] | 112 Gbps |
| Gender | Male to Male |
| Length [x] | 9.84 ft |
| Length [x] | 3 m |
| Number of Positions | 20 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Shielding | Shielded |
| Wire Gauge | 25 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 74.62 | |
| 10 | $ 57.95 | |||
| 25 | $ 52.66 | |||
| 50 | $ 49.10 | |||
| 100 | $ 45.88 | |||
Description
General part information
NJDDGN0003

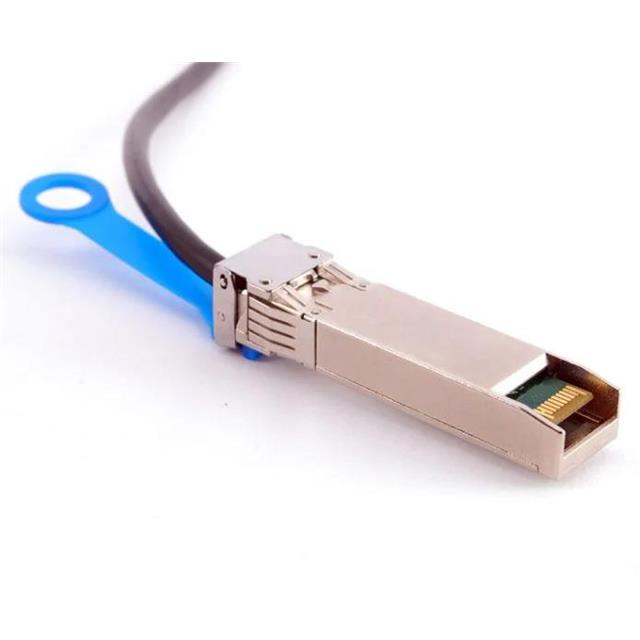

20 Position SFP Plug to Plug 9.84' (3.00m) Black Shielded
Documents
Technical documentation and resources
