2591203
ActiveSAB North America

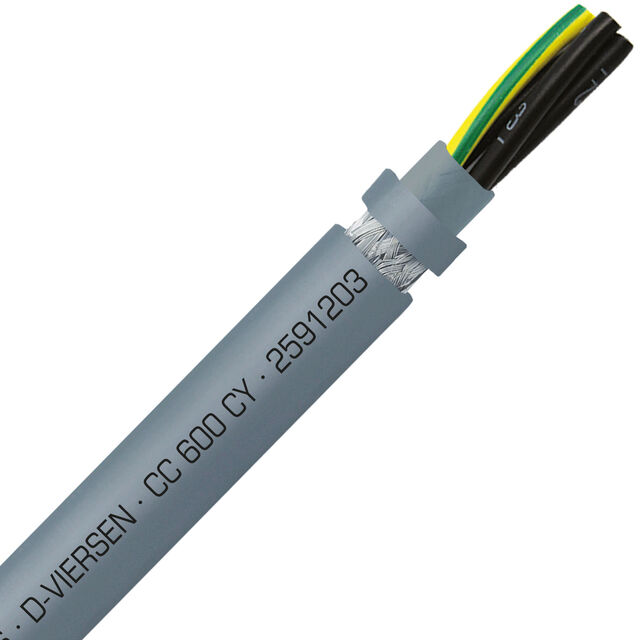

CABLE 3COND 12AWG GRY SHLD 1=1FT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
2591203
ActiveSAB North America
CABLE 3COND 12AWG GRY SHLD 1=1FT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 2591203 |
|---|---|
| Cable Type | Multi-Conductor |
| Conductor Insulation | Poly-Vinyl Chloride (PVC) |
| Conductor Material | Copper, Bare |
| Conductor Strand [custom] | 52 |
| Conductor Strand [custom] | 28 AWG |
| Features | Flame Retardant, Oil Resistant |
| Jacket (Insulation) Diameter [diameter] | 13.01 mm |
| Jacket (Insulation) Diameter [diameter] | 0.512 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Gray |
| Length | Enter Number of Feet in Order Quantity |
| Number of Conductors | 3 |
| Operating Temperature | 194 °F |
| Ratings | UL Style 21216 |
| Shield Material | Copper, Tinned |
| Shield Type | Braid |
| Voltage | 600 V |
| Wire Gauge | 12 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Spool | 1 | $ 7.77 | |
| 25 | $ 6.16 | |||
| 100 | $ 5.68 | |||
| 250 | $ 5.08 | |||
| 500 | $ 4.80 | |||
| 1000 | $ 4.53 | |||
Description
General part information
2591203
3 Conductor Multi-Conductor Cable Gray 12 AWG Braid Enter Number of Feet in Order Quantity
Documents
Technical documentation and resources
