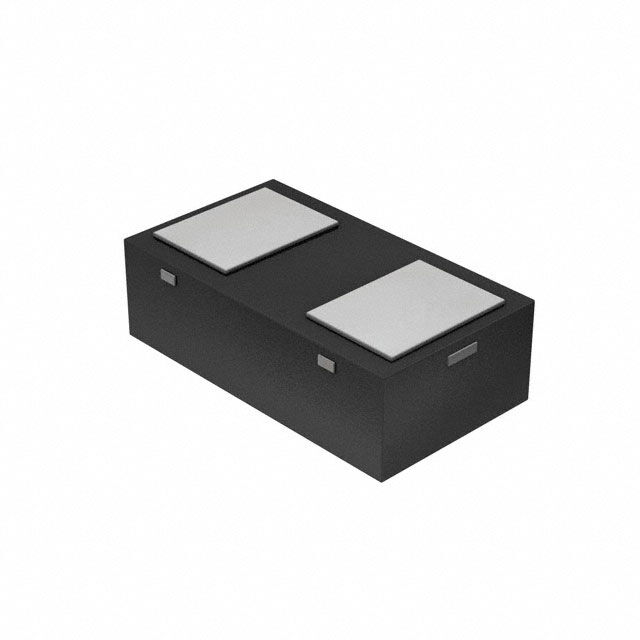

ACZRQC52C8V2-HF
ActiveComchip Technology
DIODE ZENER 8.2V 125MW SOD923F
Deep-Dive with AI
Search across all available documentation for this part.
ACZRQC52C8V2-HF
ActiveComchip Technology
DIODE ZENER 8.2V 125MW SOD923F
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ACZRQC52C8V2-HF |
|---|---|
| Current - Reverse Leakage @ Vr | 100 nA |
| Grade | Automotive |
| Impedance (Max) (Zzt) [Max] | 7 Ohms |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0402 (1006 Metric) |
| Power - Max [Max] | 125 mW |
| Qualification | AEC-Q101 |
| Supplier Device Package | 0402C, SOD-923F |
| Tolerance | 5 % |
| Voltage - Forward (Vf) (Max) @ If | 900 mV |
| Voltage - Zener (Nom) (Vz) | 8.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 5000 | $ 0.06 | |
| 10000 | $ 0.06 | |||
| 15000 | $ 0.05 | |||
| 25000 | $ 0.05 | |||
| 35000 | $ 0.05 | |||
| 50000 | $ 0.05 | |||
| 125000 | $ 0.04 | |||
| 250000 | $ 0.04 | |||
Description
General part information
ACZRQC52C8V2-HF
Zener Diode 8.2 V 125 mW ±5% Surface Mount 0402C/SOD-923F
Documents
Technical documentation and resources
No documents available
