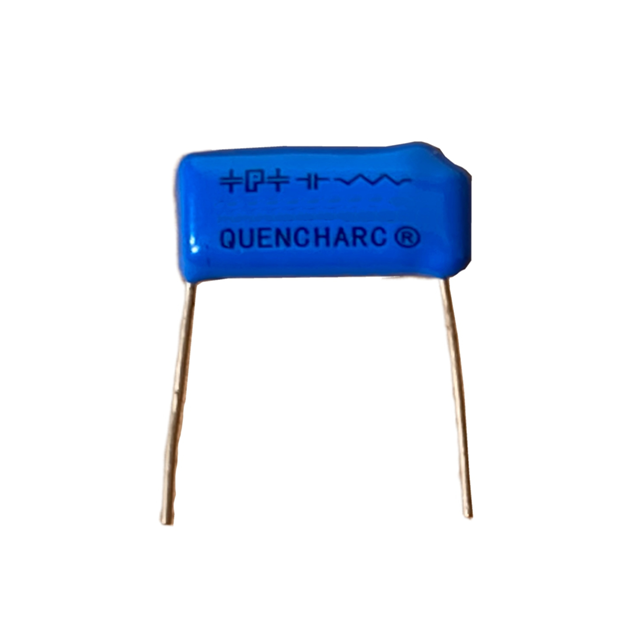

104M48QH39
ActivePaktron
FILTER RC 39 OHMS/0.1UF TH
Deep-Dive with AI
Search across all available documentation for this part.
104M48QH39
ActivePaktron
FILTER RC 39 OHMS/0.1UF TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 104M48QH39 |
|---|---|
| Applications | General Purpose |
| ESD Protection | False |
| Filter Order | 1st |
| Height [z] | 26.4 mm |
| Height [z] | 1.039 in |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Resistance - Channel (Ohms) | 39 Ohms |
| Size / Dimension [x] | 40.6 mm |
| Size / Dimension [x] | 1.598 in |
| Size / Dimension [y] | 16.3 mm |
| Size / Dimension [y] | 0.642 in |
| Technology | RC |
| Type | Low Pass |
| Values | 39 Ohms, 0.1 µF |
| Voltage - Rated [custom] | 1.2 kV |
| Voltage - Rated [custom] | 1200 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 93.17 | |
| 1 | $ 45.33 | |||
| 10 | $ 43.47 | |||
| 10 | $ 75.98 | |||
| 25 | $ 70.04 | |||
| 50 | $ 67.83 | |||
| 50 | $ 36.64 | |||
| 100 | $ 34.16 | |||
| 500 | $ 30.43 | |||
| 1000 | $ 29.81 | |||
| 2500 | $ 29.19 | |||
Description
General part information
104M48QH39
RC EMI Filter 1st Order Low Pass 1 Channel R = 39Ohms, C = 0.1µF Radial
Documents
Technical documentation and resources
No documents available
