SF-292-MM-36-LP
ActiveMaury Microwave
2.92MM MALE TO 2.92MM MALE STABI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SF-292-MM-36-LP |
|---|---|
| 1st Connector | 2.92mm Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | 2.92 mm |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Connector Impedance | 50 Ohms |
| Features | Shielded, Flexible, Phase Stable, Color Coded |
| Frequency - Max [Max] | 40 GHz |
| Length | 91.44 cm |
| Length | 36 in |
| Overall Impedance | 50 Ohms |
| Style [Max] | 2.92 mm |
| Style [Min] | 2.92 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information

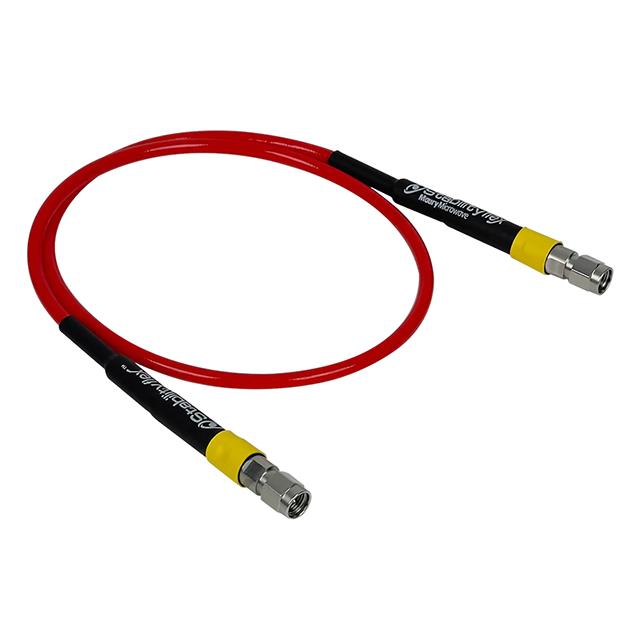

SF-292-MM-36-LP
Cable Assembly Coaxial 2.92mm to 2.92mm 36.00" (914.40mm)
