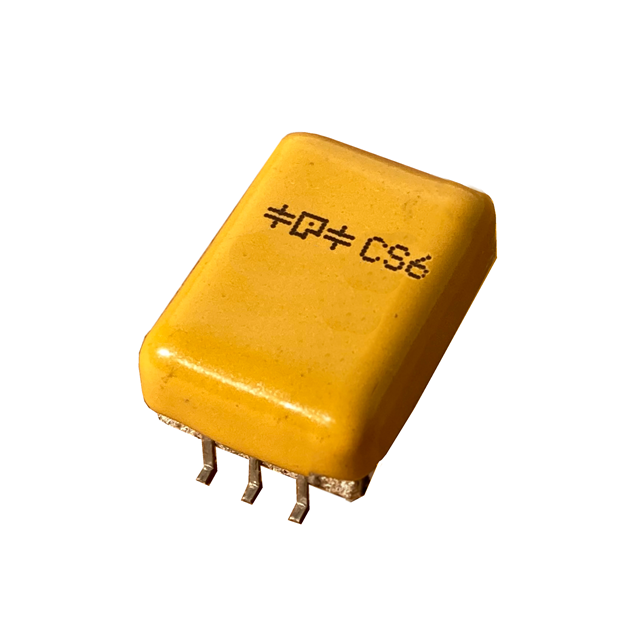

105K250CS6G
ActivePaktron
CAPACITOR MLP 1.0UF 250V SMD
Deep-Dive with AI
Search across all available documentation for this part.
105K250CS6G
ActivePaktron
CAPACITOR MLP 1.0UF 250V SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 105K250CS6G |
|---|---|
| Applications | High Pulse, EMI, DV/DT, RFI Suppression |
| Capacitance | 1 µF |
| Dielectric Material | Polyester, Metallized |
| ESR (Equivalent Series Resistance) | 12 mOhms |
| Height - Seated (Max) [Max] [z] | 0.295 in |
| Height - Seated (Max) [Max] [z] | 7.5 mm |
| Lead Spacing | 15 mm |
| Lead Spacing | 0.591 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 6-SMD, Gull Wing |
| Size / Dimension [x] | 11.2 mm |
| Size / Dimension [x] | 0.441 in |
| Size / Dimension [y] | 0.701 in |
| Size / Dimension [y] | 17.8 mm |
| Termination | Gull Wing |
| Tolerance | 10 % |
| Voltage Rating - AC | 160 V |
| Voltage Rating - DC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
105K250CS6G
1 µF Film Capacitor 160V 250V Polyester, Metallized 6-SMD, Gull Wing
Documents
Technical documentation and resources
No documents available
