LS7641-S
ActiveLSI/CSI
REVERSE PHASE LED DIMMER IC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LS7641-S
ActiveLSI/CSI
REVERSE PHASE LED DIMMER IC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LS7641-S |
|---|---|
| Applications | LED Triac Dimming |
| Current - Supply | 130 µA |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |

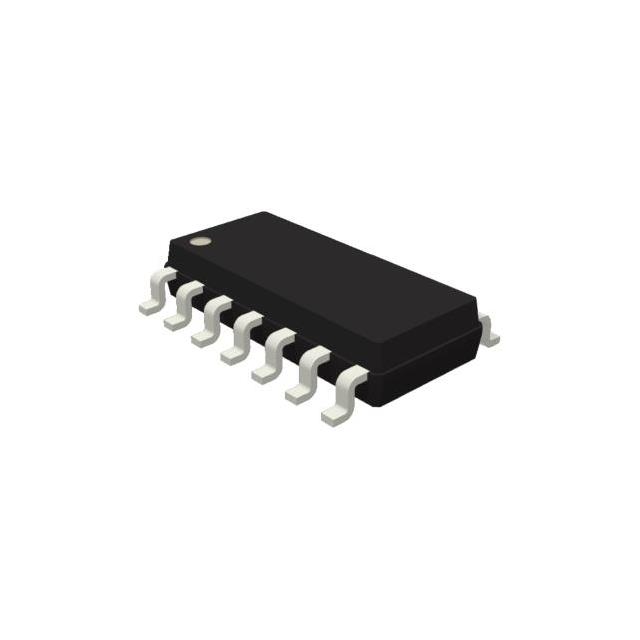

| Package / Case | 14-SOIC |
| Package / Case [x] | 0.154 in |
| Package / Case [y] | 3.9 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 4.44 | |
| 25 | $ 4.01 | |||
| 100 | $ 3.33 | |||
| 500 | $ 2.60 | |||
| 1000 | $ 2.21 | |||
Description
General part information
LS7641-S
LED Triac Dimming PMIC 14-SOIC
Documents
Technical documentation and resources
