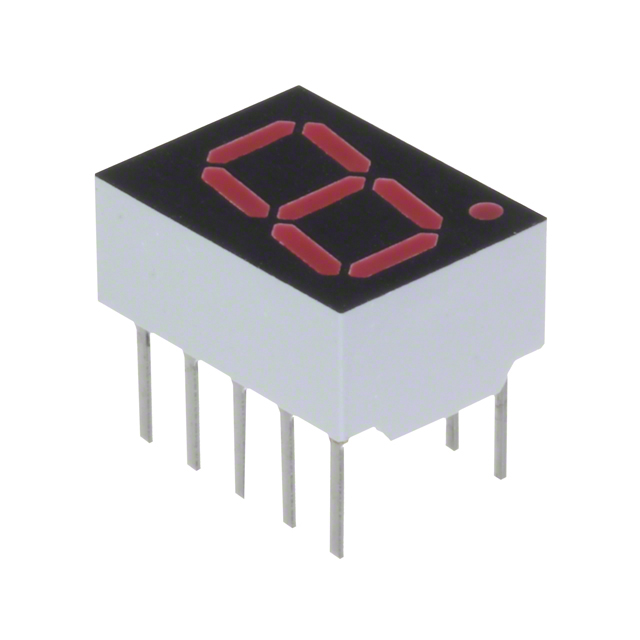

HDSP-F151
ActiveBroadcom Limited
DISPLAY 7-SEG 0.4" SGL RED 10DIP
Deep-Dive with AI
Search across all available documentation for this part.
HDSP-F151
ActiveBroadcom Limited
DISPLAY 7-SEG 0.4" SGL RED 10DIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDSP-F151 |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 10.16 mm |
| Digit/Alpha Size [custom] | 0.4 in |
| Display Type | 7-Segment |
| Millicandela Rating | 15 mcd |
| Number of Characters [custom] | 1 |
| Power Dissipation (Max) [Max] | 96 mW |
| Size / Dimension [x] | 0.508 in |
| Size / Dimension [x] | 12.9 mm |
| Size / Dimension [y] | 9.79 mm |
| Size / Dimension [y] | 0.385 " |
| Size / Dimension [z] | 0.25 " |
| Size / Dimension [z] | 6.36 mm |
| Voltage - Forward (Vf) (Typ) | 1.8 V |
| Wavelength - Peak | 645 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.17 | |
| 10 | $ 2.17 | |||
| 100 | $ 1.85 | |||
Description
General part information
HDSP-F151
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 1.8V 20mA 0.508" H x 0.385" W x 0.250" D (12.90mm x 9.79mm x 6.36mm) 10-DIP (0.300", 7.62mm)
Documents
Technical documentation and resources
No documents available
