901-10511-3
ActiveAmphenol RF
901-10511-3 AMPHENOL RF CONNECTORS SMA 0HZ TO 26.5GHZ 50OHM SOLDER ST EDGE MOUNT F GOLD - ARROW.COM
Deep-Dive with AI
Search across all available documentation for this part.
901-10511-3
ActiveAmphenol RF
901-10511-3 AMPHENOL RF CONNECTORS SMA 0HZ TO 26.5GHZ 50OHM SOLDER ST EDGE MOUNT F GOLD - ARROW.COM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 901-10511-3 |
|---|---|
| Connector Style | SMA |
| Connector Type | Female Socket, Jack |
| Contact Termination | Solder |
| Frequency - Max [Max] | 26.5 GHz |
| Impedance | 50 Ohms |
| Mating Cycles | 500 |
| Mounting Feature | Flange |
| Mounting Type | Board Edge, End Launch |
| Number of Ports | 1 |
| Operating Temperature [Max] | 165 °C |
| Operating Temperature [Min] | -65 ░C |
| Shield Termination | Solder |
| Voltage Rating | 170 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
901-10511-3

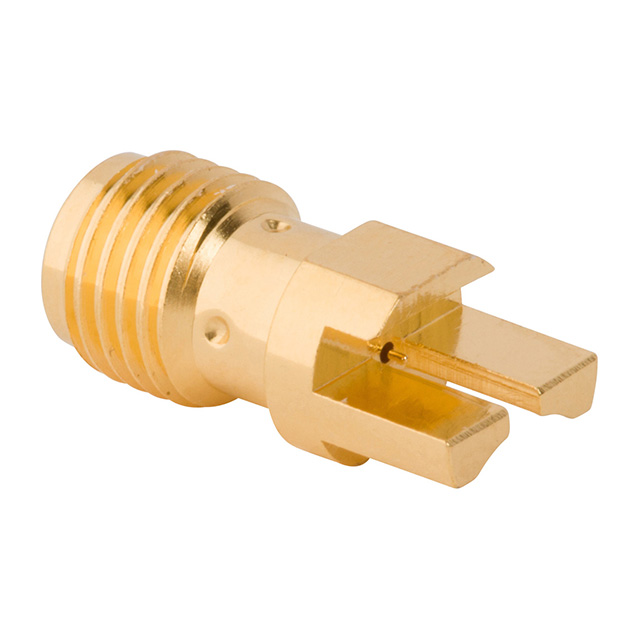

SMA Connector Jack, Female Socket 50 Ohms Board Edge, End Launch Solder
Documents
Technical documentation and resources
No documents available
