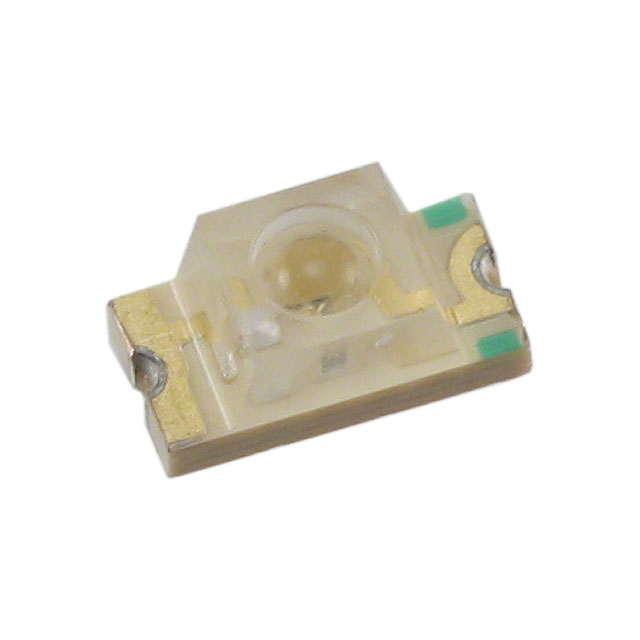

APL3015ZGC-F01
ActiveKingbright
LED GREEN CLEAR CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
APL3015ZGC-F01
ActiveKingbright
LED GREEN CLEAR CHIP SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | APL3015ZGC-F01 |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 1.4 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 0.18 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 800 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-SMD, No Lead |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 1.5 mm |
| Supplier Device Package | Chip LED |
| Viewing Angle | 70 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V |
| Wavelength - Dominant | 525 nm |
| Wavelength - Peak | 515 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.71 | |
| 10 | $ 0.47 | |||
| 100 | $ 0.31 | |||
| 1000 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.71 | ||
| 10 | $ 0.47 | |||
| 100 | $ 0.31 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 2000 | $ 0.22 | ||
| 6000 | $ 0.20 | |||
| 10000 | $ 0.19 | |||
| 50000 | $ 0.18 | |||
Description
General part information
APL3015ZGC-F01
Green 525nm LED Indication - Discrete 3.3V 2-SMD, No Lead
