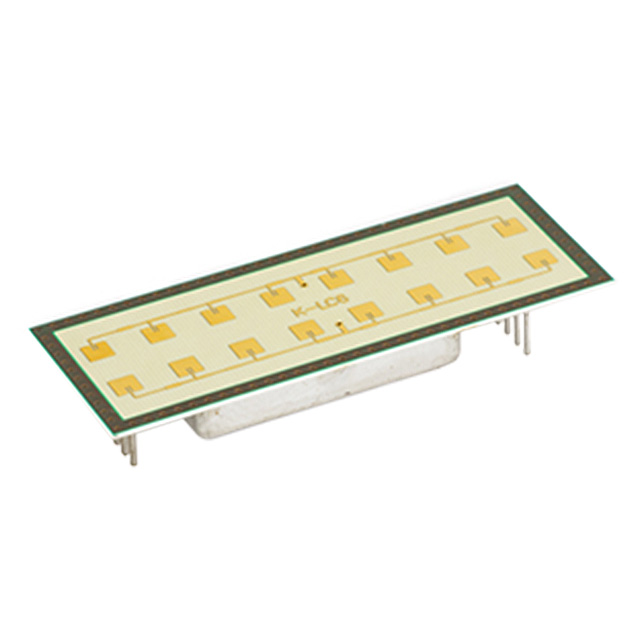

K-LC6
ObsoleteRFbeam Microwave GmbH
RF TXRX MOD RADAR CER PATCH TH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K-LC6
ObsoleteRFbeam Microwave GmbH
RF TXRX MOD RADAR CER PATCH TH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K-LC6 |
|---|---|
| Antenna Type | Integrated, Ceramic Patch |
| Current - Receiving | 50 mA |
| Current - Transmitting | 50 mA |
| Frequency [Max] | 24.25 GHz |
| Frequency [Min] | 24.05 GHz |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 8-DIP Module |
| Power - Output | 18 dBm |
| RF Family/Standard | Radar |
| Sensitivity | -126 dBm |
| Voltage - Supply [Max] | 5.25 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
K-LC6
Radar Transceiver Module 24.05GHz ~ 24.25GHz Integrated, Ceramic Patch Through Hole
Documents
Technical documentation and resources
