Technical Specifications
Parameters and characteristics for this part
| Specification | SKY13309-370LF |
|---|---|
| Circuit | SP3T |
| Frequency Range [Max] | 3 GHz |
| Frequency Range [Min] | 100 MHz |
| IIP3 | 45 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.5 dB |
| Isolation | 25 dB |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| P1dB | 29 dBm |

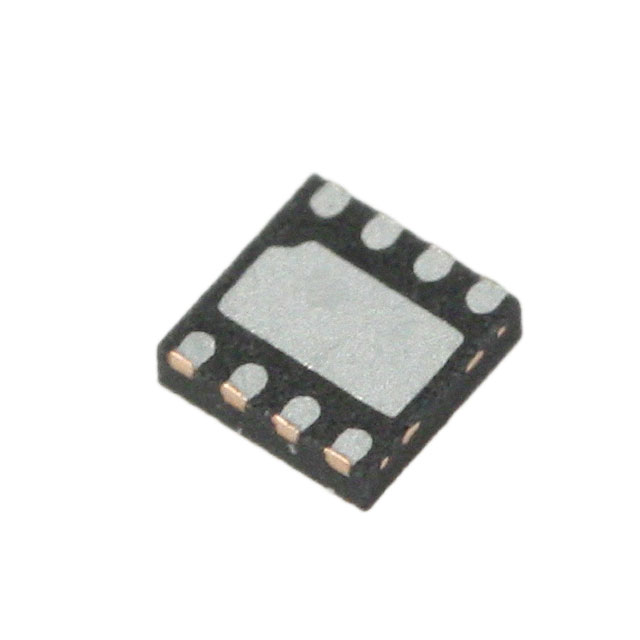

| Package / Case | 8-UFDFN Exposed Pad |
| RF Type | Bluetooth, WLAN |
| Supplier Device Package | 8-MLP (2x2) |
| Test Frequency | 2.5 GHz |
| Topology | Reflective |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SKY13309-370LF
RF Switch IC Bluetooth, WLAN SP3T 3 GHz 50Ohm 8-MLP (2x2)
