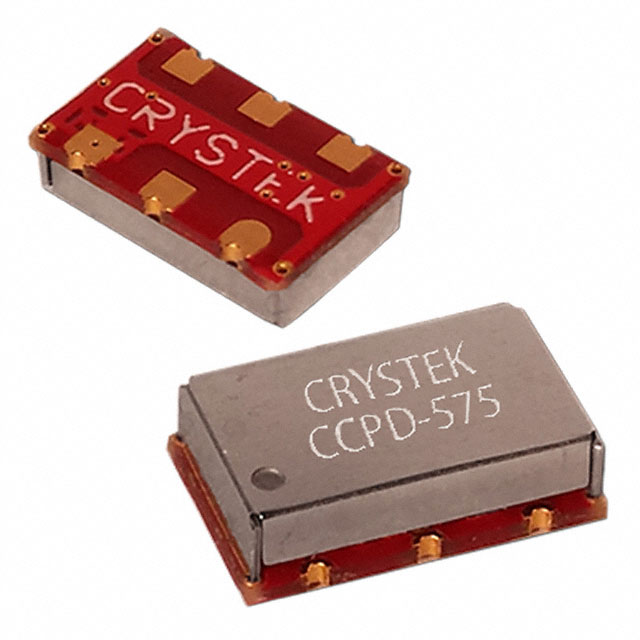

CCPD-575X-50-100.000
ActiveCrystek Corporation
XTAL OSC XO 100.0MHZ 3.3V HCMOS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CCPD-575X-50-100.000
ActiveCrystek Corporation
XTAL OSC XO 100.0MHZ 3.3V HCMOS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CCPD-575X-50-100.000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 88 mA |
| Frequency | 100 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 2.5 mm |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVPECL |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 7.5 mm |
| Size / Dimension [x] | 0.295 in |
| Size / Dimension [y] | 0.2 " |
| Size / Dimension [y] | 5.08 mm |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 25.49 | |
| 10 | $ 22.03 | |||
| 50 | $ 19.91 | |||
| 100 | $ 19.07 | |||
| 500 | $ 18.15 | |||
Description
General part information
CCPD-575X-50-100.000
100 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
