Technical Specifications
Parameters and characteristics for this part
| Specification | PR3000F02R3-111W245L-T |
|---|---|
| Capacitance | 3000 F |
| ESR (Equivalent Series Resistance) | 6 mOhm |
| Height - Seated (Max) [Max] [z] | 0.091 " |
| Height - Seated (Max) [Max] [z] | 2.3 mm |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | Nonstandard SMD |
| Size / Dimension [x] | 9.646 in |
| Size / Dimension [x] | 245 mm |
| Size / Dimension [y] | 4.37 " |
| Size / Dimension [y] | 111 mm |
| Termination | SMD (SMT) Tabs |
| Tolerance [Max] | 30 % |
| Tolerance [Min] | 0 % |
| Voltage - Rated | 4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 2 | $ 58.00 | |
Description
General part information
PR3000F02R3-111W245L-T

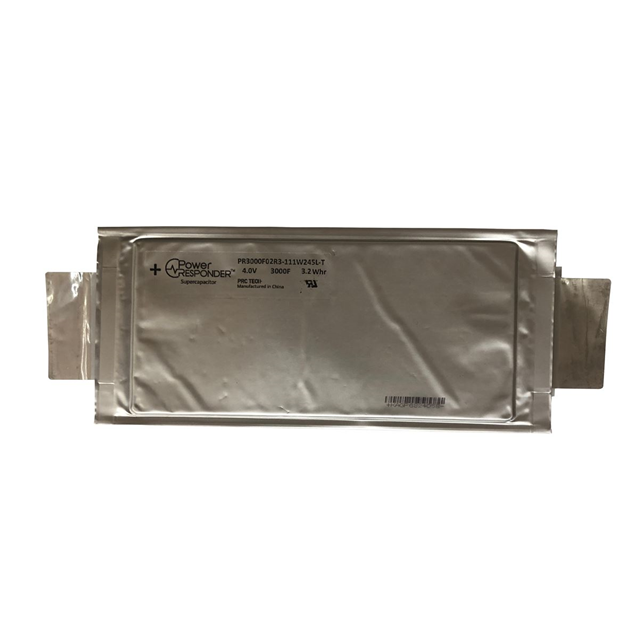

3000 F (EDLC) Supercapacitor 4 V Nonstandard SMD 6mOhm @ 1kHz 1000 Hrs @ 65°C
