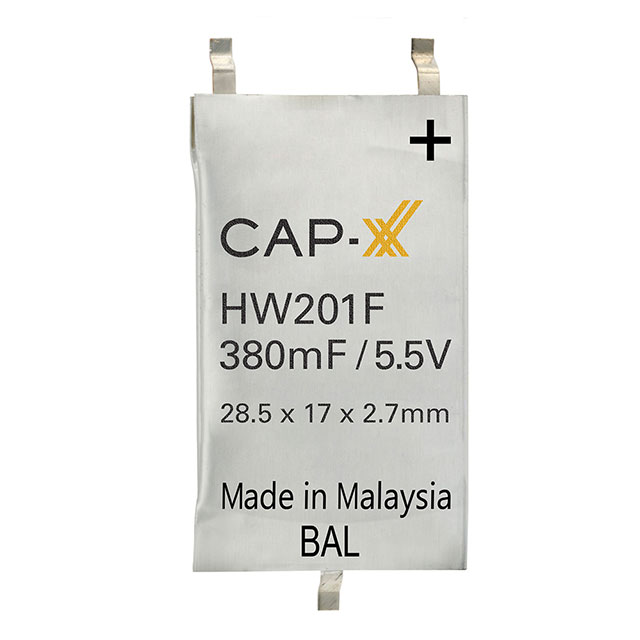

HW201F
ActiveCAP-XX Ltd Supercapacitors
CAP 380MF 5.5V -40-+85C
Deep-Dive with AI
Search across all available documentation for this part.
HW201F
ActiveCAP-XX Ltd Supercapacitors
CAP 380MF 5.5V -40-+85C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HW201F |
|---|---|
| Capacitance | 380 mF |
| ESR (Equivalent Series Resistance) | 120 mOhm |
| Height - Seated (Max) [Max] [z] | 2.5 mm |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 3-SMD |
| Size / Dimension [x] | 1.122 in |
| Size / Dimension [x] | 28.5 mm |
| Size / Dimension [y] | 0.669 in |
| Size / Dimension [y] | 17 mm |
| Tolerance | 20 % |
| Voltage - Rated | 5.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 18.00 | |
| 100 | $ 15.00 | |||
| 200 | $ 13.10 | |||
| 500 | $ 11.51 | |||
| 1000 | $ 9.93 | |||
| 2000 | $ 8.34 | |||
Description
General part information
HW201F
380 mF (EDLC) Supercapacitor 5.5 V 3-SMD 120mOhm
Documents
Technical documentation and resources
No documents available
